Anti-static
-
- Model: P-125-ASS/BSS-LUD-WEU
www.cokhitieuchuan.com
MAKING IT EASIER
P-125-ASS/BSS-LUD
Brand / Brand:

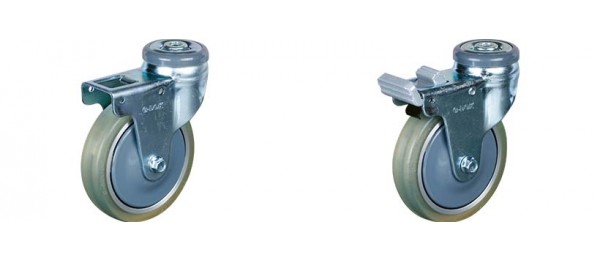

● Model
ㆍP-125-ASS-LUD(Swivel)
ㆍP-125-BSS-LUD(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, dust protection cover in the swivel head, total-lock top brake system which is applied in wheel and swivel head simultaneously, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |
| Center Hole | 12.5 |
| Offset | 45 mm |
| Overall Height | 165 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
| Wheel Diameter | 4.91 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 90 Shore A |
| Center Hole | 0.49 |
| Offset | 1.77 “ |
| Overall Height | 6.48 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 264 lbs |
| Load Capacity / 4pcs | 792 lbs |
