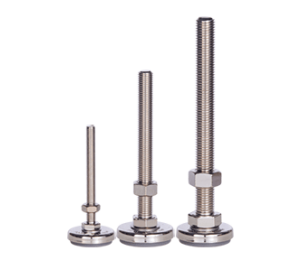

PC Series
Brand / Brand:
Our levelers are popular because there is less damage and no problem with bending when adjusting the height by applying a high-quality bolt. They are chosen by customers thanks to their anti-vibration function and better durability.
They are used in many places such as conveyor lines, various stage devices, research equipment, medical racks, heavy industry, construction, etc.
● Bolt/Nut
ㆍCarbon Steel
● Pad
ㆍPressed Steel + TPR
● Finish
ㆍNi plated / Polishing

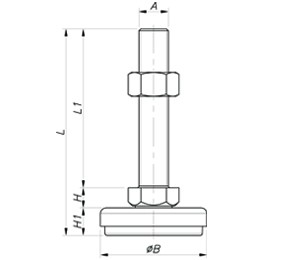

| Model | Dimension | Material | Load Capacity (kg/4PCS) |
||||||
| L1 | L | H1 | H | B | A | Bolt/Nut | Pad | ||
| PC-8 | 40 | 57.5 | 11 | 6.5 | Ø36 | M8x1.25 | Carbon Steel | Pressed Steel & T.P.R |
200 |
| 80 | 97.5 | ||||||||
| PC-10 | 60 | 81 | 13 | 8 | Ø48 | M10x1.5 | 300 | ||
| 100 | 121 | ||||||||
| PC-12 | 60 | 82 | 9 | M12x1.75 | 500 | ||||
| 90 | 112 | ||||||||
| 120 | 142 | ||||||||
| 150 | 172 | ||||||||
| PC-16 | 50 | 76 | 15 | 11 | Ø58 | M16x2.0 | Carbon Steel | Pressed Steel & T.P.R |
800 |
| 80 | 106 | ||||||||
| 100 | 126 | ||||||||
| 130 | 156 | ||||||||
| 150 | 176 | ||||||||
| 180 | 206 | ||||||||
| 200 | 226 | ||||||||
| PC-20 | 100 | 129 | 14 | M20x2.5 | 1000 | ||||
| 130 | 159 | ||||||||
| 150 | 179 | ||||||||
| 180 | 209 | ||||||||
| 200 | 229 | ||||||||
| Meterial | Surface Treatment |
| Carbon & Pressed Steel | Ni Plated |
| Model | Dimension | Material | Load Capacity (lbs/4PCS) |
||||||
| L1 | L | H1 | H | B | A | Bolt/Nut | Pad | ||
| PC-8 | 1 9/16″ | 2 1/4″ | 7/16″ | 1/4″ | 1 13/32″ |
M8x1.25 | Carbon Steel | Pressed Steel & T.P.R |
4400lbs |
| 3 5/32″ | 3 27/32″ | ||||||||
| PC-10 | 2 3/8″ | 3 3/16″ | 17/32″ | 5/16″ | 1 7/8″ |
M10x1.5 | 660lbs | ||
| 3 15/16″ | 4 3//4″ | ||||||||
| PC-12 | 2 3/8″ | 3 1/4″ | 11/32″ | M12x1.75 | 1100lbs | ||||
| 3 17/32″ | 4 7/16″ | ||||||||
| 4 23/32″ | 5 9/16″ | ||||||||
| 5 29/32″ | 6 3/4″ | ||||||||
| PC-16 | 1 31/32″ | 3″ | 19/32″ | 7/16″ | 2 9/32″ |
M16x2.0 | Carbon Steel | Pressed Steel & T.P.R |
1760lbs |
| 3 5/32″ | 4 3/16″ | ||||||||
| 3 15/16″ | 4 15/16″ | ||||||||
| 5 1/8″ | 6 5/32″ | ||||||||
| 5 29/32″ | 6 29/32″ | ||||||||
| 7 3/32″ | 8 1/8″ | ||||||||
| 7 7/8″ | 8 7/8″ | ||||||||
| PC-20 | 3 15/16″ | 5 3/32″ | 9/16″ | M20x2.5 | 2200lbs | ||||
| 5 1/8″ | 6 1/4″ | ||||||||
| 5 29/32″ | 7 1/16″ | ||||||||
| 7 3/32″ | 8 7/32″ | ||||||||
| 7 7/8″ | 9″ | ||||||||
| Meterial | Surface Treatment |
| Carbon & Pressed Steel | Ni Plated |
