PFA Series
Brand / Brand:
Our levelers are popular because there is less damage and no problem with bending when adjusting the height by applying a high-quality bolt. They are chosen by customers thanks to their anti-vibration function and better durability.
They are used in many places such as conveyor lines, various stage devices, research equipment, medical racks, heavy industry, construction, etc.
● Bolt/Nut
ㆍCarbon Steel
● Pad
ㆍPressed Steel
● Finish
ㆍNi plated / Polishing

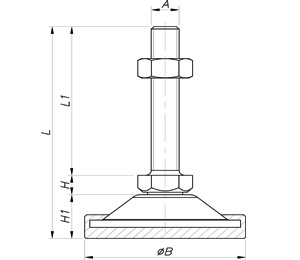

| Model | Dimension | Material | Load Capacity (kg/4PCS) |
||||||
| L1 | L | H1 | H | B | A | Bolt/Nut | Pad | ||
| PFA-10 | 60 | 85 | 17 | 8 | Ø74 | M10x1.5 | Carbon Steel | Pressed Steel | 300 |
| 100 | 125 | ||||||||
| PFA-12 | 60 | 86 | 9 | M12x1.75 | 500 | ||||
| 90 | 116 | ||||||||
| 120 | 146 | ||||||||
| 150 | 176 | ||||||||
| PFA-16 | 50 | 79 | 11 | M16x2.0 | Carbon Steel | Pressed Steel | 800 | ||
| 80 | 109 | ||||||||
| 100 | 129 | ||||||||
| 130 | 159 | ||||||||
| 150 | 179 | ||||||||
| 180 | 209 | ||||||||
| 200 | 229 | ||||||||
| PFA-20 | 100 | 131 | 14 | M20x2.5 | 1000 | ||||
| 130 | 161 | ||||||||
| 150 | 181 | ||||||||
| 180 | 211 | ||||||||
| 200 | 231 | ||||||||
| Meterial | Surface Treatment |
| Carbon & Pressed Steel | Ni Plated |
| Model | Dimension | Material | Load Capacity (lbs/4PCS) |
||||||
| L1 | L | H1 | H | B | A | Bolt/Nut | Pad | ||
| PFA-10 | 2 3/8″ | 3 11/32″ | 21/32″ | 5/16″ | 2 29/32″ |
M10x1.5 | Carbon Steel | Pressed Steel | 660lbs |
| 3 15/16″ | 4 29/32″ | ||||||||
| PFA-12 | 2 3/8″ | 3 3/8″ | 11/32″ | M12x1.75 | 1100lbs | ||||
| 3 17/32″ | 4 9/16″ | ||||||||
| 4 23/32″ | 5 3/4″ | ||||||||
| 5 29/32″ | 6 15/16″ | ||||||||
| PFA-16 | 1 31/32″ | 3 1/16″ | 7/16″ | M16x2.0 | Carbon Steel | Pressed Steel | 1760lbs | ||
| 3 5/32″ | 4 1/4″ | ||||||||
| 3 15/16″ | 5 1/32″ | ||||||||
| 5 1/8″ | 6 7/32″ | ||||||||
| 5 29/32″ | 8″ | ||||||||
| 7 3/32″ | 8 3/16″ | ||||||||
| 7 7/8″ | 8 31/32″ | ||||||||
| PFA-20 | 3 15/16″ | 5 5/32″ | 9/16″ | M20x2.5 | 2200lbs | ||||
| 5 1/8″ | 6 11/32″ | ||||||||
| 5 29/32″ | 7 1/8″ | ||||||||
| 7 3/32″ | 8 5/16″ | ||||||||
| 7 7/8″ | 9 3/32″ | ||||||||
| Meterial | Surface Treatment |
| Carbon & Pressed Steel | Ni Plated |
