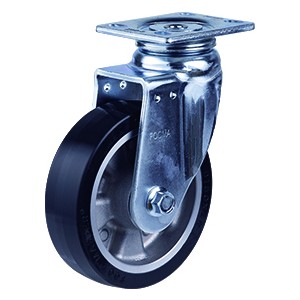

Anti-static
-
- Model: PH-150-ASF/ARF/BSF-HUD-WEU

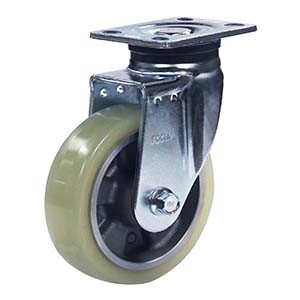

Zinc-plated frame
-
- Model: PH-150-ASF/ARF/BSF-HUD-FZN
www.cokhitieuchuan.com
MAKING IT EASIER
PH-150-ASF/ARF/BSF-HUD
Brand / Brand:

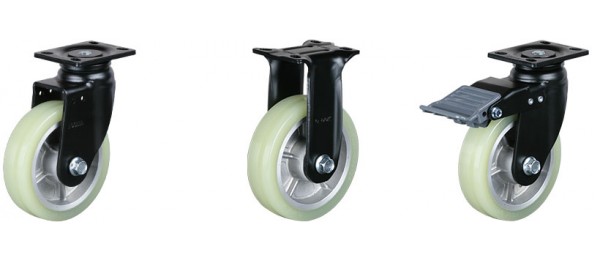

● Model
ㆍPH-150-ASF-HUD(Swivel)
ㆍPH-150-ARF-HUD(Rigid)
ㆍPH-150-BSF-HUD(Swivel with brake)

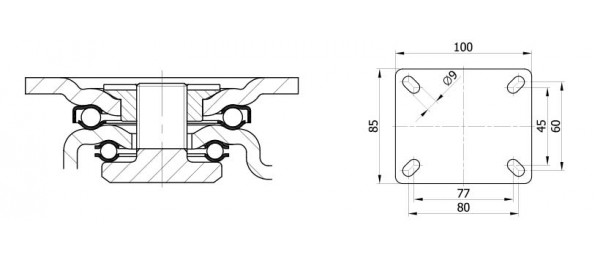

* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 40mm |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 or 77 x 45 mm |
| Plate Hole | 9 mm |
| Offset | 50 mm |
| Overall Height | 206 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 550 kg |
| Load Capacity / 4pcs | 1,650 kg |
| Wheel Diameter | 5.90 “ |
| Width of Tread | 1.57 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 3.93 x 3.34″ |
| Plate Hole Centers | 3.14 x 2.36 or 3.03 x 1.77 “ |
| Plate Hole | 0.35 “ |
| Offset | 1.97 “ |
| Overall Height | 8.10 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 1.213 lbs |
| Load Capacity / 4pcs | 3,638 lbs |
