PHW-150-ASF/ARF/BSF-HUWD
Brand / Brand:

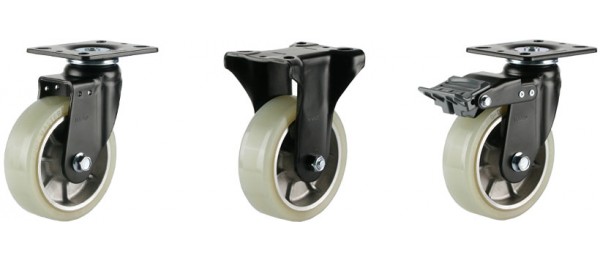

● Model
ㆍPHW-150-ASF-HUWD(Swivel)
ㆍPHW-150-ARF-HUWD(Rigid)
ㆍPHW-150-BSF-HUWD(Swivel with brake)

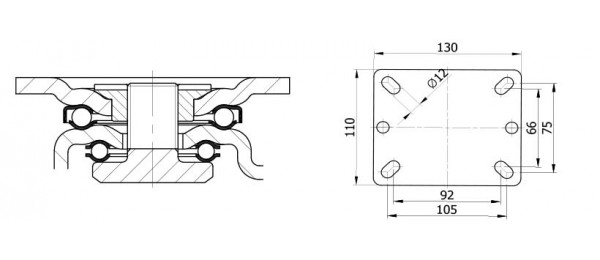

* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 130 x 110 mm |
| Plate Hole Centers | 105 x 75 or 92 x 66 mm |
| Plate Hole | 12 mm |
| Offset | 50 mm |
| Overall Height | 206 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 600 kg |
| Load Capacity / 4pcs | 1,800 kg |
| Wheel Diameter | 5.90 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 5.11 x 4.32 “ |
| Plate Hole Centers | 4.13 x 2.95 or 3.62 x 2.59 “ |
| Plate Hole | 0.47 “ |
| Offset | 1.97 “ |
| Overall Height | 8.10 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,323 lbs |
| Load Capacity / 4pcs | 3,968 lbs |
