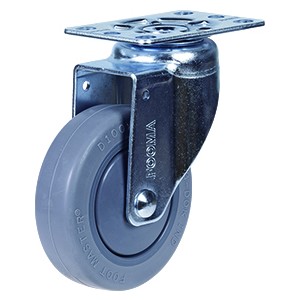

Zinc-plated frame
-
- Model: PL-100-ASF/ARF/BSF-TUD-FZN

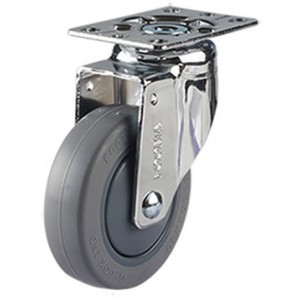

Chrome plated frame
-
- Model: PL-100-ASF/ARF/BSF-TUD-FCR
www.cokhitieuchuan.com
MAKING IT EASIER
PL-100-ASF/ARF/BSF-TUD
Brand / Brand:

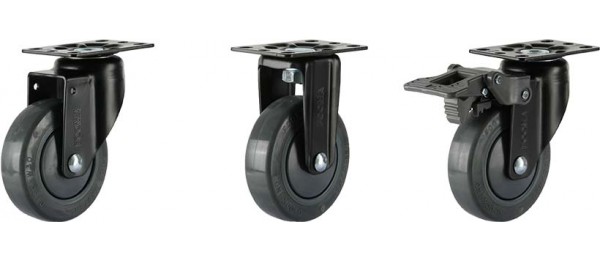

● Model
ㆍPL-100-ASF-TUD(Swivel)
ㆍPL-100-ARF-TUD(Rigid)
ㆍPL-100-BSF-TUD(Swivel with brake)
* Brackets: Pressed steel plate, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong pressed integrated steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Injected polyurethane(Shore A92), PP core, two ball bearings
| Wheel Diameter | 100mm |
| Width of Tread | 30mm |
| Hardness of Tread | 92 Shore A |

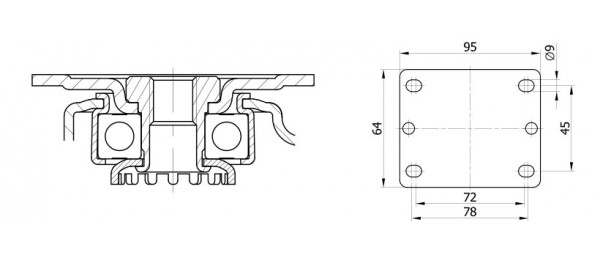

| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole | 9mm |
| Offset | 40mm |
| Overall Height | 137.5 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 100 kg |
| Load Capacity / 4pcs | 300 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 92 Shore A |
| Size of Plate | 3.74 x 2.52 “ |
| Plate Hole Centers | 3.07 x 1.77 or 2.83 x 1.77“ |
| Plate Hole | 0.35 “ |
| Offset | 1.57 “ |
| Overall Height | 5.41 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 220 lbs |
| Load Capacity / 4pcs | 660 lbs |
