PL-100-ASS-FRD
Brand / Brand:
● Model

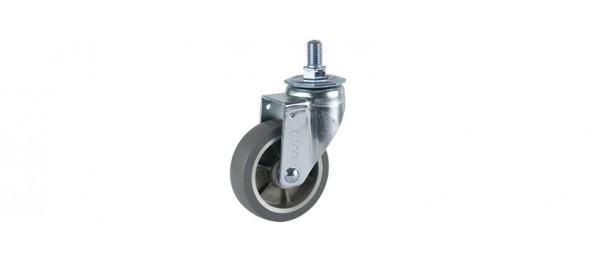

ㆍPL-100-ASS-FRD(Swivel)
* Brackets: Forged steel bolt, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong integrated pressed steel frame, bolted wheel axle structure, heat-resistant special grease applied
* Surface Treatment: Zinc plated
* Wheel: Fluoro rubber(Shore A85), aluminum core, two ball bearings
| Wheel Diameter | 100mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |
| Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
| Bolt Length | 25mm |
| Offset | 40mm |
| Overall Height | 137.5 mm |
| Temperature | -10 ~ 250 ℃ |
| Load Capacity / 1pcs | 80 kg |
| Load Capacity / 4pcs | 240 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 85 Shore A |
| Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
| Bolt Length | 0.98 “ |
| Offset | 1.57 “ |
| Overall Height | 5.41 “ |
| Temperature | 14 ~ 482 ℉ |
| Load Capacity / 1pcs | 176 lbs |
| Load Capacity / 4pcs | 529 lbs |
