PL-125-ASF/ARF-FRD
Brand / Brand:

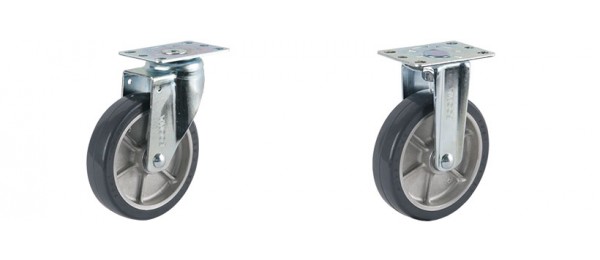

● Model
ㆍPL-125-ASF-FRD(Swivel)
ㆍPL-125-ARF-FRD(Rigid)
* Brackets: Pressed steel plate, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong integrated pressed steel frame, bolted wheel axle structure, heat-resistant special grease applied
* Surface Treatment: Zinc plated
* Wheel: Fluoro rubber(Shore A85), aluminum core, two ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |

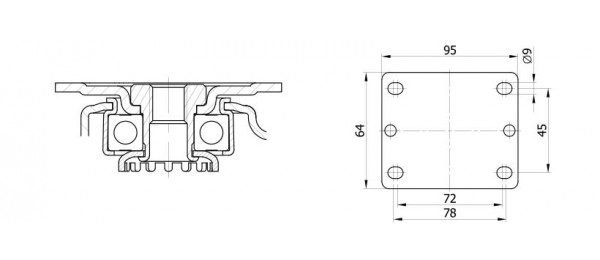

| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole | 9mm |
| Offset | 40mm |
| Overall Height | 162.5 mm |
| Temperature | -10 ~ 250 ℃ |
| Load Capacity / 1pcs | 100 kg |
| Load Capacity / 4pcs | 300 kg |
| Wheel Diameter | 4.92 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 85 Shore A |
| Size of Plate | 3.74 x 2.52 “ |
| Plate Hole Centers | 3.07 x 1.77 or 2.83 x 1.77 “ |
| Plate Hole | 0.35 “ |
| Offset | 1.57 “ |
| Overall Height | 6.40 “ |
| Temperature | 14 ~ 482 ℉ |
| Load Capacity / 1pcs | 220 lbs |
| Load Capacity / 4pcs | 660 lbs |
