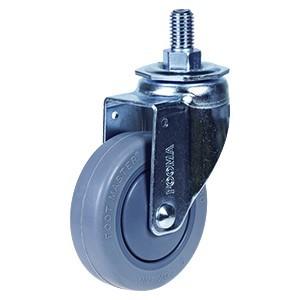

Zinc-plated frame
-
- Model: PL-150-ASS/BSS-HRD-FZN

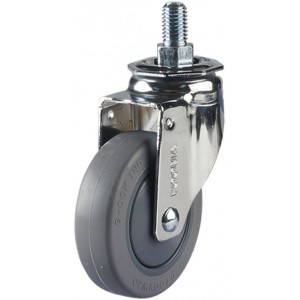

Chrome plated frame
-
- Model: PL-150-ASS/BSS-HRD-FCR
www.cokhitieuchuan.com
MAKING IT EASIER
PL-150-ASS/BSS-HRD
Brand / Brand:

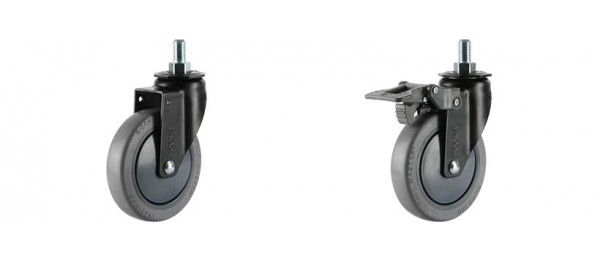

● Model
ㆍPL-150-ASS-HRD(Swivel)
ㆍPL-150-BSS-HRD(Swivel with brake)
* Brackets: Forged steel bolt, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong pressed integrated steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Injected rubber(Shore A85), PP core, two ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |

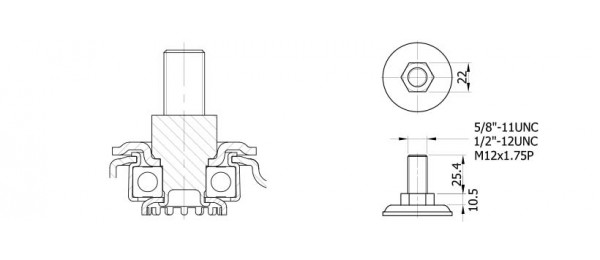

| Center Bolt | 5/8 “-11UNC (M12x1.75P or 1/2 “-12UNC) |
| Bolt Length | 25mm |
| Offset | 40mm |
| Overall Height | 188 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 110 kg |
| Load Capacity / 4pcs | 330 kg |
| Wheel Diameter | 5.9 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 85 Shore A |
| Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
| Bolt Length | 0.98 “ |
| Offset | 1.57 “ |
| Overall Height | 7.4 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 242 lbs |
| Load Capacity / 4pcs | 762 lbs |
