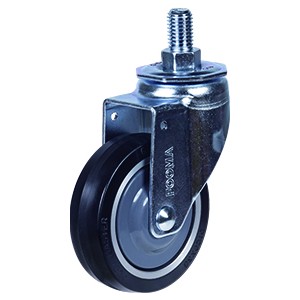

Anti-static
-
- Model: PL-150-ASS/BSS-LUD-WEU

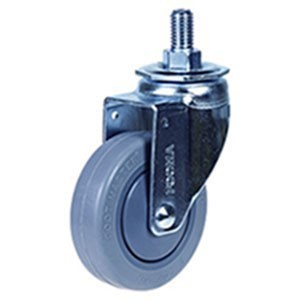

Zinc-plated frame
-
- Model: PL-150-ASS/BSS-LUD-FZN

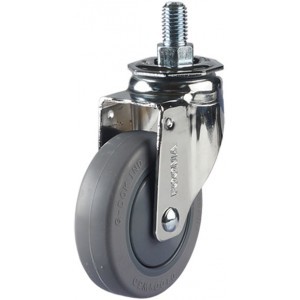

Chrome plated frame
-
- Model: PL-150-ASS/BSS-LUD-FCR
● Model

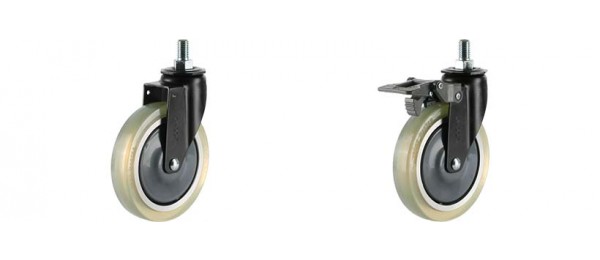

ㆍPL-150-ASS-LUD(Swivel)
ㆍPL-150-BSS-LUD(Swivel with brake)
* Brackets: Forged steel bolt, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong pressed integrated steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings
Wheel Diameter | 150 mm |
Width of Tread | 30 mm |
Hardness of Tread | 90 Shore A |

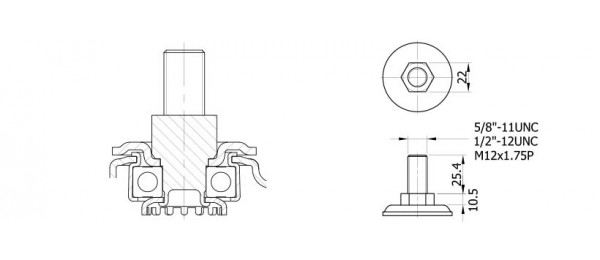

Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
Bolt Length | 25mm |
Offset | 40mm |
Overall Height | 188 mm |
Temperature | -10 ~ 90 ℃ |
Load Capacity / 1pcs | 120 kg |
Load Capacity / 4pcs | 360 kg |
Wheel Diameter | 5.9 “ |
Width of Tread | 1.18 “ |
Hardness of Tread | 90 Shore A |
Center Bolt | 5/8"-11UNC or M12x1.75P or 1/2"-12UNC |
Bolt Length | 0.98 “ |
Offset | 1.57 “ |
Overall Height | 7.4 “ |
Temperature | 14 ~ 194 ℉ |
Load Capacity / 1pcs | 265 lbs |
Load Capacity / 4pcs | 794 lbs |
Anti-static
Zinc-plated frame
Chrome plated frame
