PL-75-ASF/ARF/BSF-EUS
Brand / Brand:

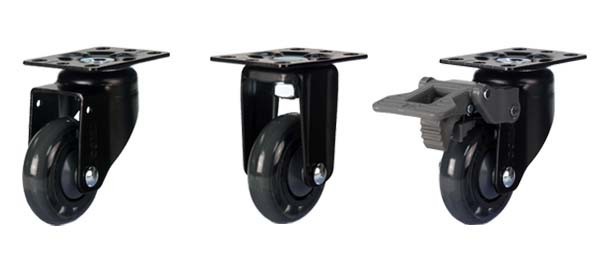

● Model
ㆍPL-75-ASF-EUS(Swivel)
ㆍPL-75-ARF-EUS(Rigid)
ㆍPL-75-BSF-EUS(Swivel with brake)
* Brackets: Pressed steel plate, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong pressed integrated steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: High elasticity polyurethane(Shore A80), PC core, one ball bearing
| Wheel Diameter | 75 mm |
| Width of Tread | 25mm |
| Hardness of Tread | 80 Shore A |

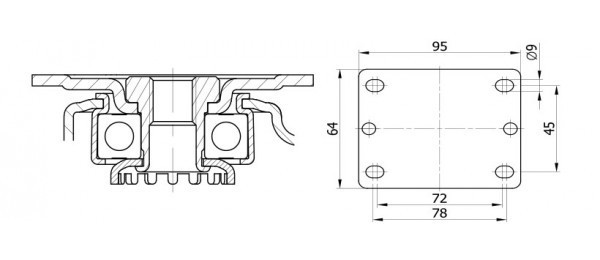

| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole | 9mm |
| Offset | 40mm |
| Overall Height | 112.5 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 75 kg |
| Load Capacity / 4pcs | 225 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 0.98 “ |
| Hardness of Tread | 80 Shore A |
| Size of Plate | 3.74 x 2.52 “ |
| Plate Hole Centers | 3.07 x 1.77 or 2.83 x 1.77“ |
| Plate Hole | 0.35 “ |
| Offset | 1.57 “ |
| Overall Height | 4.43 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 165 lbs |
| Load Capacity / 4pcs | 495 lbs |
