PM-200-ASF/ARF/BSF-MCD
Brand / Brand:

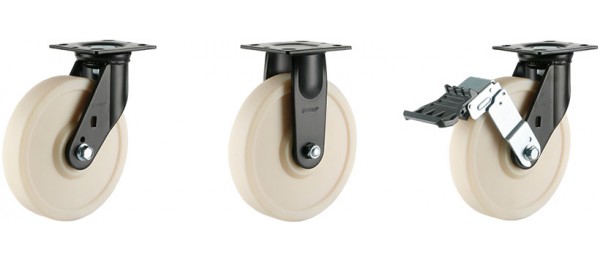

● Model
ㆍPM-200-ASF-MCD(Swivel)
ㆍPM-200-ARF-MCD(Rigid)
ㆍPM-200-BSF-MCD(Swivel with brake)

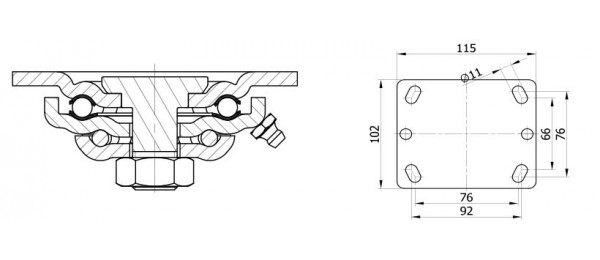

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, grease nipple, strong welded steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings
| Wheel Diameter | 200 mm |
| Width of Tread | 40mm |
| Hardness of Tread | 80 Shore D |
| Size of Plate | 115 x 102 mm |
| Plate Hole Centers | 92 x 66 or 76 x 76 mm |
| Plate Hole | 11 mm |
| Offset | 65 mm |
| Overall Height | 239 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 500 kg |
| Load Capacity / 4pcs | 1,500 kg |
| Wheel Diameter | 7.87 “ |
| Width of Tread | 1.57 “ |
| Hardness of Tread | 80 Shore D |
| Size of Plate | 4.52 x 4.01 “ |
| Plate Hole Centers | 3.62 x 2.59 or 2.99 x 2.99″ |
| Plate Hole | 0.43 “ |
| Offset | 2.56 “ |
| Overall Height | 9.41 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 1,102 lbs |
| Load Capacity / 4pcs | 3,307 lbs |
