RT1-150-ASF/ARF/BSF-MUPD
Brand / Brand:

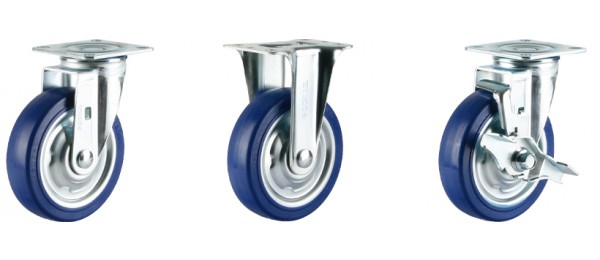

● Model
ㆍRT1-150-ASF-MUPD(Swivel)
ㆍRT1-150-ARF-MUPD(Rigid)
ㆍRT1-150-BSF-MUPD(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A95), pressed steel core, two ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 40mm |
| Hardness of Tread | 95 Shore A |

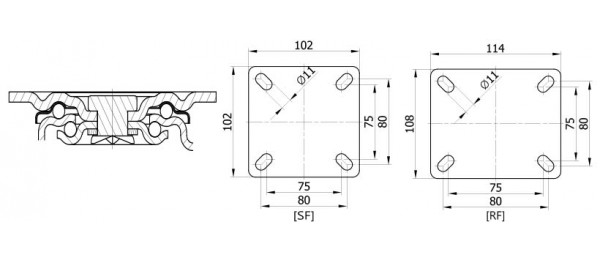

| Size of Plate |
[SF] 102 x 102 , [RF] 108 x 114 mm |
| Plate Hole Centers |
80 x 80 or 75 x 75 mm |
| Plate Hole | 11 mm |
| Offset | 40mm |
| Overall Height | 190 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 350 kg |
| Load Capacity / 4pcs | 1,050 kg |
| Wheel Diameter | 150 mm |
| Width of Tread | 45 mm |
| Hardness of Tread | 95 Shore A |
| Size of Plate |
[SF] 102 x 102 , [RF] 108 x 114 mm |
| Plate Hole Centers |
3.14 x 3.14 or 2.95 x 2.95 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.57 “ |
| Overall Height | 7.48 “ |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 771 lbs |
| Load Capacity / 4pcs | 2,314 lbs |
