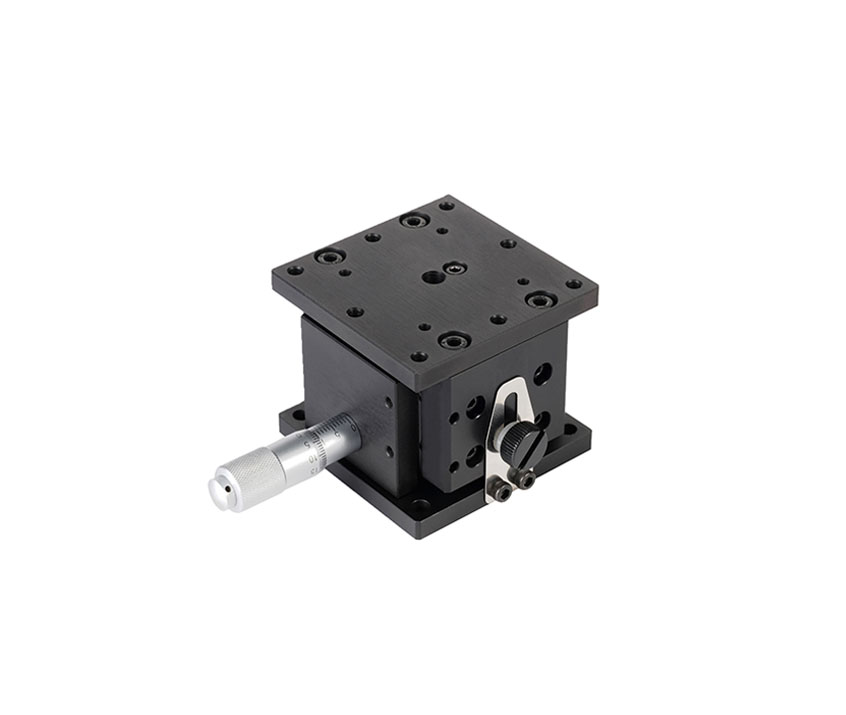

S6H > Manual Stage
Brand / Brand:
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
-
Read the zero position of the scale Ⓐ in mm on the scale Ⓑ (29mm in the picture on the right)
-
Look at the scale Ⓐ and read the scale Ⓒ that comes to the same position as the scale Ⓑ (matching between bottom and top scales) (the above figures in 0.1 mm increments)
-
The total measured value of (1) and (2) is 29.6 mm.
| Specification / Model | S6H-40 | S6H-60 | S6H-80 | S6H-100 |
|---|---|---|---|---|
| Microhead Position | Center | Center | Center | Center |
| Z – Stage Type | Horizontal | Horizontal | Horizontal | Horizontal |
| Stage Surface (mm) | 40 X 40 | 60 X 60 | 80 X 80 | 100 X 100 |
| Stroke (mm) | ± 3 | ± 6.5 | ± 6.5 | ± 12.5 |
| Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) |
| Parallelism (mm) | 0.05 | 0.05 | 0.05 | 0.08 |
| Running Parallelism (mm) | 0.02 | 0.02 | 0.02 | 0.02 |
| Straightness (mm) | 0.005 | 0.01 | 0.01 | 0.01 |
| Travel Guide | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing |
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Load Capacity (kg/f) | 1 | 3 | 4 | 5 |
| Weight (kg) | 0.145 | 0.45 | 0.8 | 1.1 |
| Specification / Model | S6H-120 | |||
|---|---|---|---|---|
| Microhead Position | Center | |||
| Z – Stage Type | Horizontal | |||
| Stage Surface (mm) | 120 X 120 | |||
| Stroke (mm) | ± 12.5 | |||
| Resolution (mm) | 10um / division (0.01) | |||
| Parallelism (mm) | 0.08 | |||
| Running Parallelism (mm) | 0.02 | |||
| Straightness (mm) | 0.01 | |||
| Travel Guide | Crossed Roller Bearing | |||
| Material | Aluminum | |||
| Load Capacity (kg/f) | 6 | |||
| Weight (kg) | 1.35 |

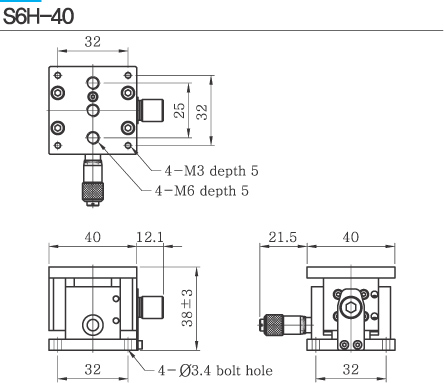

S6H-40
S6H-60

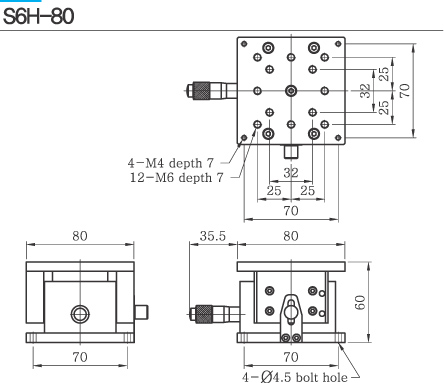

S6H-80

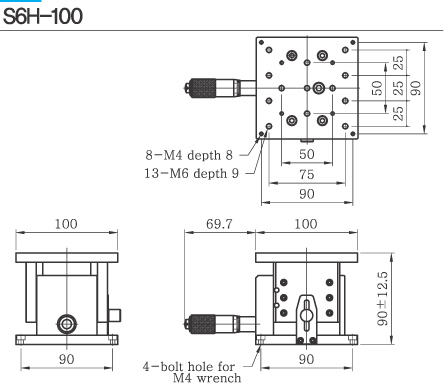

S6H-100

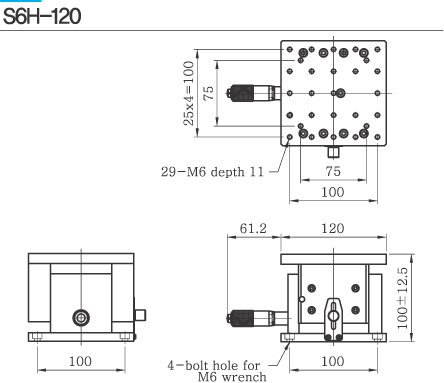

S6H-120
