Anti-static
-

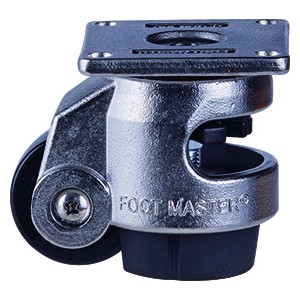

- Model: SGDN-60-F-NYN-CEN
Polyurethane pad
-

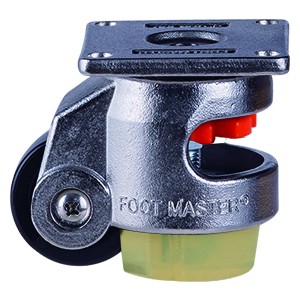

- Model: SGDN-60-F-NYN-CUR
www.cokhitieuchuan.com
MAKING IT EASIER

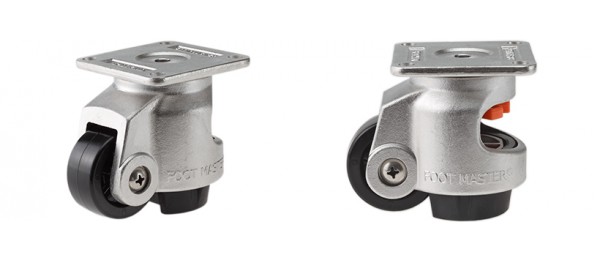

SGDN-60-F-NYN
Brand / Brand:
● Model
ㆍSGDN-60-F-NYN
* Brackets: Stainless forged steel plate and stainless casting frame, double ball bearing with hardened stainless steel bearing seats in the swivel head, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad, bolted wheel axle structure, completely corrosion-resistant components applied
* Surface Treatment: Electrolytic polishing
* Wheel: Nylon66(Shore D70), no bearing
| Wheel Diameter | 50 mm |
| Width of Tread | 25 mm |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 73 x 73 mm |
| Plate Hole Centers | 58 x 58 mm |
| Plate Hole | 7 mm |
| Leveling Extent | 10mm |
| Offset | 38 mm |
| Overall Height | 82 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 280 kg |
| Load Capacity / 4pcs | 560 kg |
| Wheel Diameter | 1.97 “ |
| Width of Tread | 0.98 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 2.87 x 2.87 “ |
| Plate Hole Centers | 2.28 x 2.28 “ |
| Plate Hole | 0.28 “ |
| Leveling Extent | 0.39 “ |
| Offset | 1.49 “ |
| Overall Height | 3.22 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 617 lbs |
| Load Capacity / 4pcs | 1,235 lbs |
