SGL-125-ASS/BSS-HRSS
Brand / Brand:
● Model

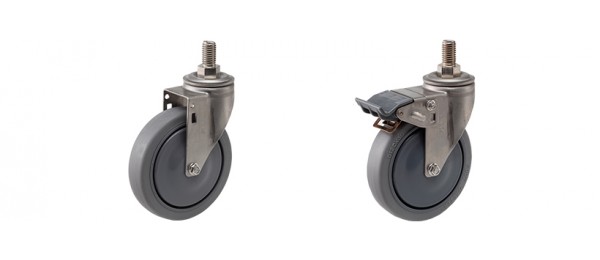

ㆍSGL-125-ASS-HRSS(Swivel)
ㆍSGL-125-BSS-HRSS(Swivel with brake)
* Brackets: Forged stainless steel bolt, double ball bearing in the swivel head, strong integrated pressed stainless steel frame, smooth-operating top brake system, bolted wheel axle structure, completely corrosion-resistant components applied
* Wheel: Injected rubber(Shore A85), PP core, one stainless steel ball bearing
| Wheel Diameter | 125mm |
| Width of Tread | 30mm |
| Hardness of Tread | 85 Shore A |

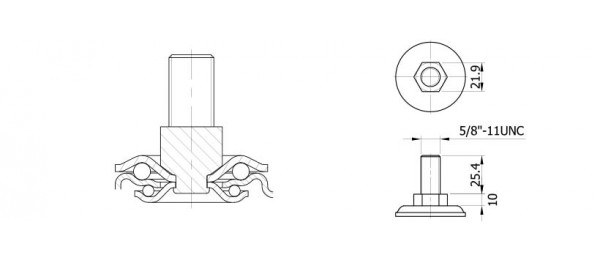

| Center Bolt | 5/8 ” – 11UNC |
| Bolt Length | 25 mm |
| Offset | 35 mm |
| Overall Height | 157 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 100 kg |
| Load Capacity / 4pcs | 300 kg |
| Wheel Diameter | 4.91 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 85 Shore A |
| Center Bolt | 5/8 ” – 11UNC |
| Bolt Length | 0.98 “ |
| Offset | 1.37 “ |
| Overall Height | 6.18 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 220 lbs |
| Load Capacity / 4pcs | 660 lbs |
