M12
-
- Model: SPLM-125-ASS/BSS-HRD-PM12
www.cokhitieuchuan.com
MAKING IT EASIER
SPLM-125-ASS/BSS-HRD
Brand / Brand:

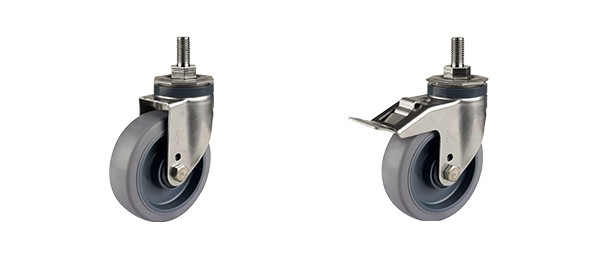

● Model

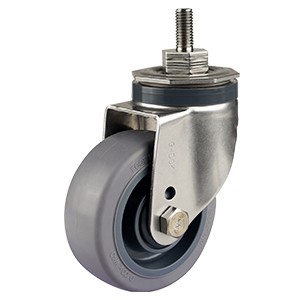

ㆍSPLM-125-ASS-HRD(Swivel)
ㆍSPLM-125-BSS-HRD(Swivel with brake)
* Brackets: Pressed stainless steel bolt, double ball bearing in the
swivel head, strong integrated pressed stainless steel frame, dust
protection cover in the swivel head, total-lock steel top brake system
which is applied in wheel and swivel head simultaneously, bolted wheel
axle structure, completely corrosion-resistant components applied.
* Surface Treatment : Barrel Polishing
* Wheel: Injected rubber(Shore A85), PP core, two stainless steel ball bearings
| Wheel Diameter | 125mm |
| Width of Tread | 40mm |
| Hardness of Tread | 85 Shore A |

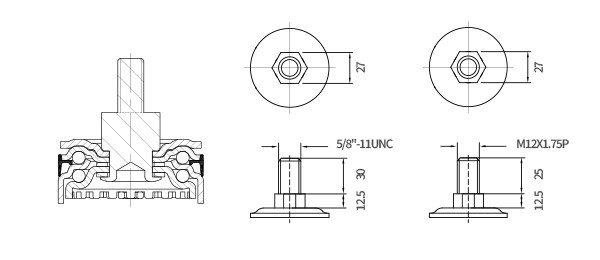

| Center Bolt | 5/8 “-11UNC or M12x1.75P |
| Bolt Length | 30 or 25 mm |
| Offset | 32 mm |
| Overall Height | 158.5 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 170 kg |
| Load Capacity / 4pcs | 510 kg |
| Wheel Diameter | 4.91 “ |
| Width of Tread | 1.57 “ |
| Hardness of Tread | 85 Shore A |
| Center Bolt | 5/8 “-11UNC or M12x1.75P |
| Bolt Length | 1.18 or 0.98 “ |
| Offset | 1.25 “ |
| Overall Height | 6.24 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 374 lbs |
| Load Capacity / 4pcs | 1,122 lbs |
