SPM-150-ASF/ARF/BSF-HRD
Brand / Brand:

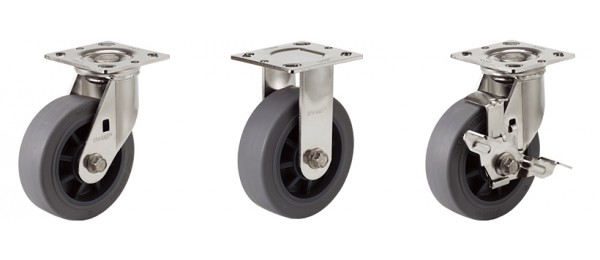

● Model
ㆍSPM-150-ASF-HRD(Swivel)
ㆍSPM-150-ARF-HRD(Rigid)
ㆍSPM-150-BSF-HRD(Swivel with brake)
* Brackets: Pressed stainless steel plate, double ball bearing with hardened stainless steel bearing seats in the swivel head, strong welded frame, smooth side brake system, bolted wheel axle structure, completely corrosion-resistant components applied
* Surface Treatment: Electrolytic polishing
* Wheel: Injected rubber(Shore A85), PP core, two stainless steel ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 85 Shore A |

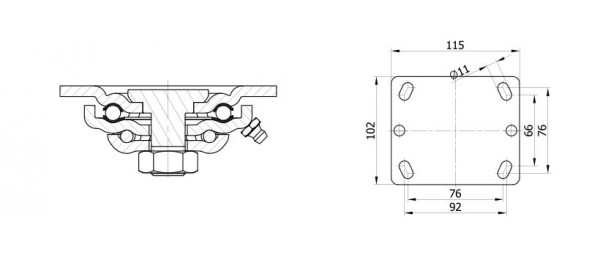

| Size of Plate | 115 x 102 mm |
| Plate Hole Centers | 92 x 66 or 76 x 76 mm |
| Plate Hole | 11 mm |
| Offset | 50 mm |
| Overall Height | 190 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 210 kg |
| Load Capacity / 4pcs | 630 kg |
| Wheel Diameter | 5.90 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 85 Shore A |
| Size of Plate | 4.52 x 4.01 “ |
| Plate Hole Centers | 3.62 x 2.59 or 2.99 x 2.99 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.97 “ |
| Overall Height | 7.47 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 463 lbs |
| Load Capacity / 4pcs | 1,389 lbs |
