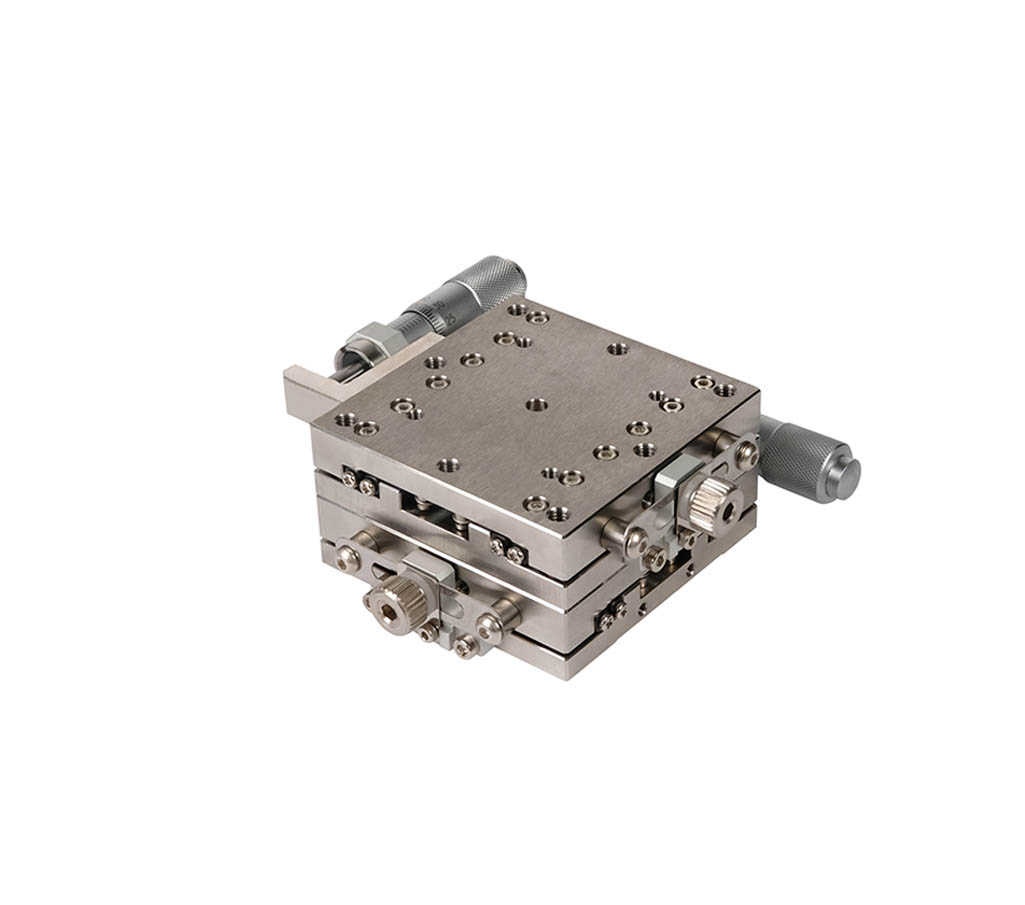

SS2(SUS) > Manual Stage
Brand / Brand:
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
-
Read the zero position of the scale Ⓐ in mm on the scale Ⓑ (29mm in the picture on the right)
-
Look at the scale Ⓐ and read the scale Ⓒ that comes to the same position as the scale Ⓑ (matching between bottom and top scales) (the above figures in 0.1 mm increments)
-
The total measured value of (1) and (2) is 29.6 mm.
| Specification / Model | SS2-40L, R, C | SS2-50L, R, C | SS2-60L, R, C | SS2-60LP, RP |
|---|---|---|---|---|
| Microhead Position | Left, Right, Center | Left, Right, Center | Left, Right, Center | Left, Right |
| Stage Surface (mm) | 40 X 40 | 50 X 50 | 60 X 60 | 60 X 60 |
| Stroke (mm) | ± 6.5 | ± 6.5 | ± 6.5 | ± 6.5 |
| Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) |
| Parallelism (mm) | 0.03 | 0.03 | 0.03 | 0.03 |
| Running Parallelism (mm) | 0.01 | 0.01 | 0.015 | 0.015 |
| Straightness (mm) | 0.003 | 0.003 | 0.005 | 0.005 |
| Travel Guide | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing |
| Material | SUS304 (Shack h.nickel) | SUS440C (Shack h.nickel) | SUS304 (Shack h.nickel) | SUS304 (Shack h.nickel) |
| Load Capacity (kg/f) | 4 | 6 | 8 | 8 |
| Weight (kg) | 0.5 | 0.6 | 0.8 | 0.8 |
SS2-40
SS2-50
SS2-60
