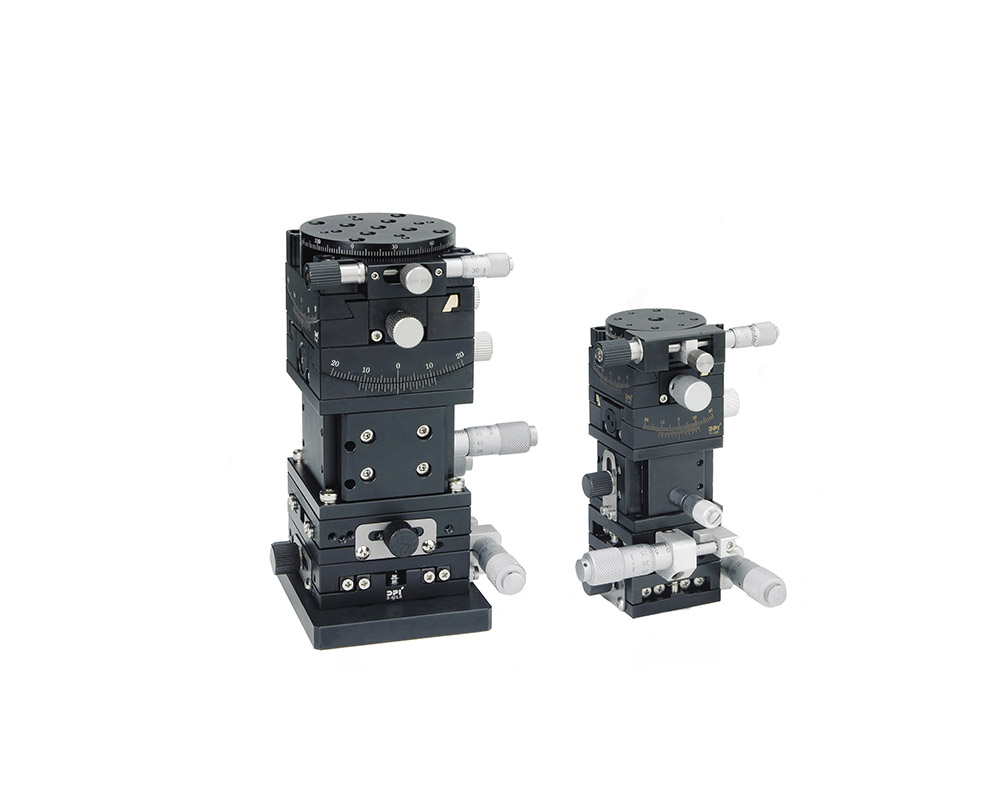

SU6 > Manual Stage
Brand / Brand:
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
-
Read the zero position of the scale Ⓐ in mm on the scale Ⓑ (29mm in the picture on the right)
-
Look at the scale Ⓐ and read the scale Ⓒ that comes to the same position as the scale Ⓑ (matching between bottom and top scales) (the above figures in 0.1 mm increments)
-
The total measured value of (1) and (2) is 29.6 mm.
| Specification / Model | SU6-4016 | SU6-4018 | SU6-6018 | SU6-6020 |
|---|---|---|---|---|
| Stage Surface (mm) | 40 X Φ40 | 40 X Φ40 | 60 X Φ60 | 60 X Φ60 |
| Travel Range (mm) – XY | ± 6.5 | ± 6.5 | ± 6.5 | ± 6.5 |
| Travel Range (mm) – Z | ± 3º | ± 3º | ± 6.5 | ± 6.5 |
| Travel Range (mm) – R | 360º / ± 15º | 360º / ± 15º | 360º / ± 15º | 360º / ± 15º |
| Travel Range (mm) – XθYθ | ± 15º | ± 15º | 15º | 15º |
| Load Capacity (kg/f) | 0.5 | 0.5 | 1 | 1 |
| Weight (kg) | 0.9 | 0.9 | 1.82 | 1.82 |
| Applicable Stage – XY | S2-4016 (107P) | S2-4018 (108P) | S2-6018 (109P) | S2-6020 (110P) |
| Applicable Stage – Z | S6H-40 (138P) | S6H-40 (138P) | S6H-60 (139P) | S6H-60 (139P) |
| Applicable Stage – R | RDS-40 (206P) | RDS-40 (206P) | RDS-60 (206P) | RDS-60 (206P) |
| Applicable Stage – XθYθ | G2-40R3551 (215P) | G2-40R3551 (215P) | G2-60R5084 (215P) | G2-60R5084 (215P) |
| Dimension A (mm) | 40 | 40 | 60 | 60 |
| Dimension B (mm) | 114 | 118 | 175 | 179 |
| Dimension C (mm) | 13.3 | 13.3 | 13.3 | 13.3 |
| Dimension D (mm) | 23.3 | 23.3 | 31.5 | 31.5 |
| Dimension E (mm) | 21.5 | 21.5 | 35.5 | 35.5 |
| Dimension F (mm) | 21 | 21 | 28.5 | 28.5 |
| Specification / Model | SU6-6024 | SU6-80 | SU6-100 | |
|---|---|---|---|---|
| Stage Surface (mm) | 60 X Φ60 | 80 X Φ80 | 100 X Φ100 | |
| Travel Range (mm) – XY | ± 6.5 | ± 12.5 | ± 12.5 | |
| Travel Range (mm) – Z | ± 6.5 | ± 6.5 | ± 12.5 | |
| Travel Range (mm) – R | 360º / ± 15º | 360º / ± 15º | 360º / ± 15º | |
| Travel Range (mm) – XθYθ | 15º | 15º | 15º | |
| Load Capacity (kg/f) | 1 | 1.5 | 2 | |
| Weight (kg) | 1.82 | 3.35 | 4.96 | |
| Applicable Stage – XY | S2-6024 (111P) | S2-80 (112P) | S2-100 (113P) | |
| Applicable Stage – Z | S6H-60 (139P) | S6H-80 (142P) | S6H-100 (143P) | |
| Applicable Stage – R | RDS-60 (206P) | RDS-80 (206P) | RDS-100 (210P) | |
| Applicable Stage – XθYθ | G2-60R5084 (215P) | G2-80 (214P) | G2-100 (214P) | |
| Dimension A (mm) | 60 | 80 | 100 | |
| Dimension B (mm) | 187 | 181 | 229 | |
| Dimension C (mm) | 13.3 | 13.3 | 13.3 | |
| Dimension D (mm) | 31.5 | 40.7 | 29.1 | |
| Dimension E (mm) | 35.5 | 40.7 | 69.7 | |
| Dimension F (mm) | 28.5 | 24.1 | 24.1 |
SU6-4016
SU6-4018
SU6-6018
SU6-6020
SU6-6024
SU6-80
SU6-100
