ASS’Y	Code Number	Torque N*m(kg*cm)	Net weight(g)
TH-122-1A	KH00410	1.37±0.20(14±2.0)	24.4
TH-122-2A	KH00411	1.08±0.15(11±1.5)	17.5
TH-122-3A	KH00412	0.69±0.10(7±1.0)	12
TH-122-4A	KH00413	0.34±0.05(3.5±0.5)	7.5

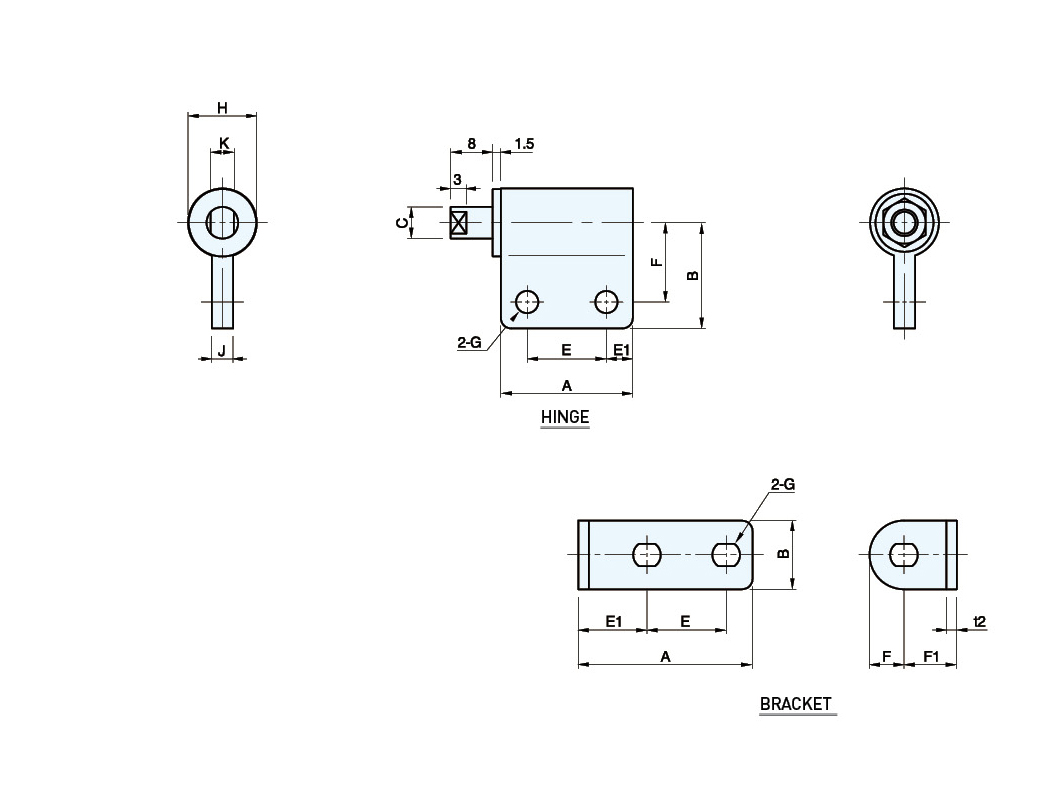

BRACKET	A	B	E	E1	F	F1	G	Net weight(g)
1	33	13	15	13	6.5	10	Ф4.2×5.2	7.8
2	30.5	11	14	11.5	5.5	10	Ф4.2×5.2	6.2
3	27	10	13	10	5	8	Ф3.2×4.2	5
4	22.5	8	10	8.5	4	8	Ф3.2×4.2	3.4



HINGE	Code Number	A	B	C	E	E1	F	G	H	J	K	Net weight(g)
TH-122-1A	KH00410	25	20	Ф6	15	5	15	Ф4.2	Ф13	4	4.4	16.6
TH-122-2A	KH00411	24	18	Ф5	14	5	13	Ф4.2	Ф11	4	3.6	11.3
TH-122-3A	KH00412	21	15	Ф4	13	4	11	Ф3.2	Ф10	3	2.9	7
TH-122-4A	KH00413	18	11	Ф3	10	4	7.5	Ф3.2	Ф8	3	2.2	4.1
