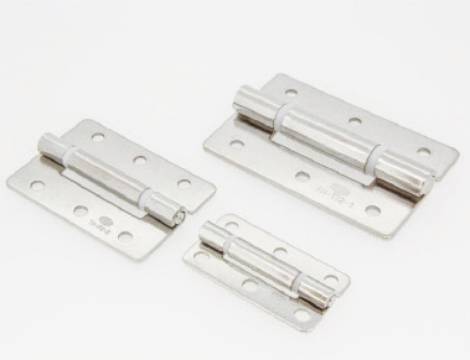

• It’s a free-stop hinge that can be stopped at a particular position.
•
Since plastic parts are certified FDA grade, it does not have harmful effect even if they touch food.

Specification

• Operating Temperature Range : 10℃~50℃

Use

• Medical instrument, EV charging box, Food packing machine, etc.

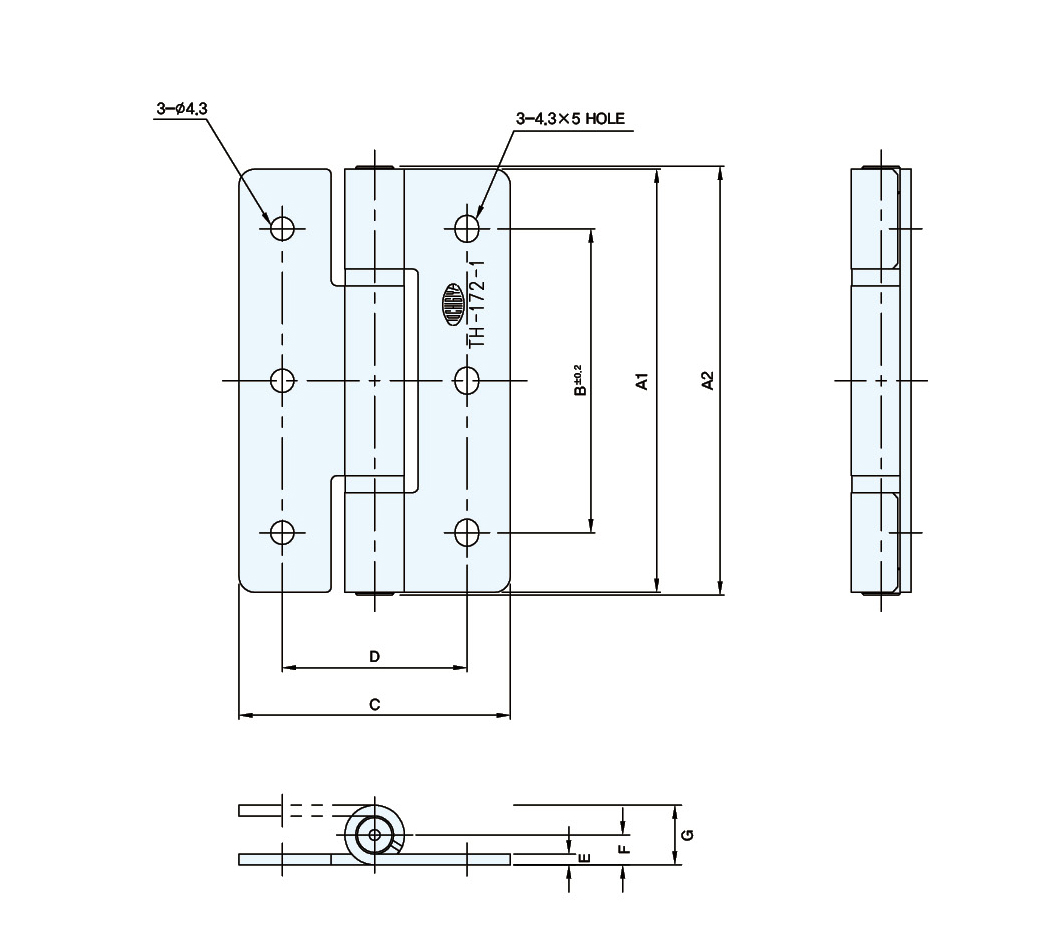

Model Name	Code Number	A1	A2	B	C	D	E	F	G	Initial Torque N·m(Kgf·cm)	Net weight(g)
TH-172-1	KD02198	78	(79)	56	50	34	t2	5.5-0.2+0.6	(11)	1.570+0.39(160+4)	91.5
TH-172-2	KD02174	62	(63)	40	42	30	t1.5	4-0.2+0.5	(8)	0.590+0.25(160+2.5)	41
TH-172-3	KD02193	50	(51)	39	26	16	t1.5	3.5-0.5+0.4	(7)	0.20+0.15(20+1.5)	22

www.cokhitieuchuan.com

MAKING IT EASIER

TOCHIGIYA TH-172

Brand / Brand:

Model Name

Code Number

A1

A2

B

C

D

E

F

G

Initial Torque N·m(Kgf·cm)

Net weight(g)

TH-172-1

KD02198

78

(79)

56

50

34

t2

5.5-0.2+0.6

(11)

1.570+0.39(160+4)

91.5

TH-172-2

KD02174

62

(63)

40

42

30

t1.5

4-0.2+0.5

(8)

0.590+0.25(160+2.5)

41

TH-172-3

KD02193

50

(51)

39

26

16

t1.5

3.5-0.5+0.4

(7)

0.20+0.15(20+1.5)

22
