TOCHIGIYA TH-173

Brand / Brand:

Free Stop Hinge

Features

• It’s a free-stop hinge that can be stopped at a particular position.
•
Easy to mount.

Specification

• Installation Direction : Set the pin horizontally.
•
Durability : 20000 cycle.(at normal Temp)
•
Operating Temperature Range : 15℃~45℃
•
Material Used : POM
•
Finish : Black, Primary Color

Use

• Office equipment, Steel furniture, Small lightweight door etc

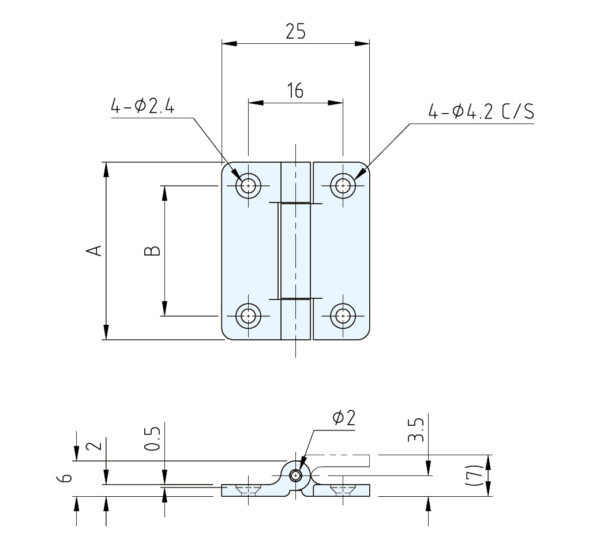

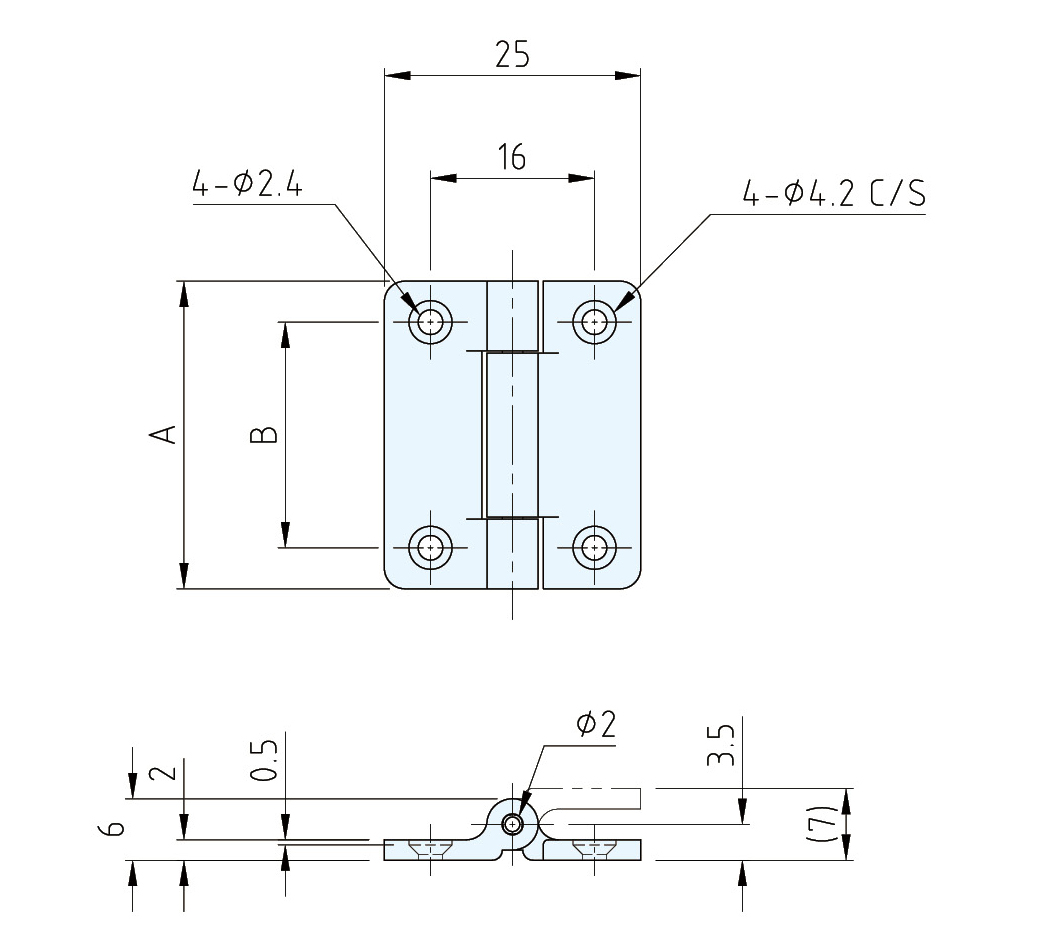

Model Name	Code Number	색상	A	B	Initial Torque N·m(Kgf·cm)	Net weight(g)
TH-173-1	KD02117	Black	30	22	0.14±0.05(1.5±0.5)	3.1
TH-173-1W	KD02118	Primary color	30	22	0.14±0.05(1.5±0.5)	3.1
TH-173-2	KD02119	Black	20	12	0.08±0.02(0.8±0.2)	2.1
TH-173-2W	KD02120	Primary color	20	12	0.08±0.02(0.8±0.2)	2.1
