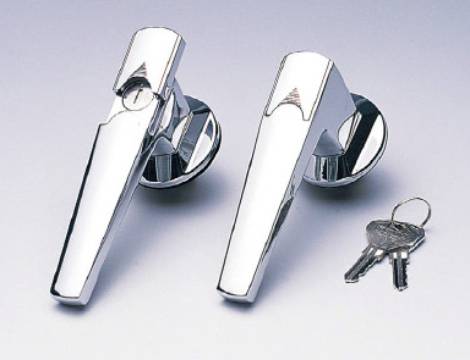

TOCHIGIYA THA-330

Brand / Brand:

Waterproof Handle

Features

• Waterproof.
•
Rotation angle – right 60°, left 60°
•
Use in both right and left.

Specification

• Materials Used : Zinc alloy(ZDCII)
•
Finish : Chrome plating(MZCr)

Use

• Incoming panel, Distributing panel, Control panel,
Physico-chemistry instruments, Testing apparatus, etc.

Model Name	Code Number	L	H1	H2	H3	H4	W1	W2	W3	W4	D	P	Net weight(g)
Model Name	Code Number	L	H1	H2	H3	H4	W1	W2	W3	W4	D	P	With Key	Without Key
THA-330-1Cr	KA00992	120	22.4	48.7	4.5	25	35	10	27	16	60	40	–	520
THA-330-1KC	KA00993	120	22.4	48.7	4.5	25	35	10	27	16	60	40	517	520
THA-330-2Cr	KA00994	100	14.3	44.6	1.5	25	30	8	25	15	48	32	–	360
THA-330-2KC	KA00995	100	14.3	44.6	1.5	25	30	8	25	15	48	32	363	360
THA-330-3Cr	KA00996	80	14.8	44.6	1.5	28	30	8	23	12	46	32	–	315
THA-330-3KC	KA00997	80	14.8	44.6	1.5	28	30	8	23	12	46	32	313	315
