G-125-ASF/ARF/BSF/BRF-HRD
Brand / Thương hiệu:

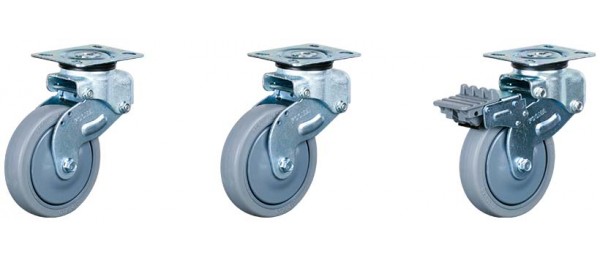

● Model
ㆍG-125-ASF-HRD(Swivel)
ㆍG-125-ARF-HRD(Rigid)
ㆍG-125-BSF-HRD(Swivel with brake)
ㆍG-125-BRF-HRD(Rigid with brake)
● Spring hardness selectable
ㆍ(50º or 70º) / (Standard 70º)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, dust protection cover in the swivel head, fine shock absorption function with special rubber, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Injected rubber(Shore A85), PP core, two ball bearings
| Wheel Diameter | 125 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 85 Shore A |

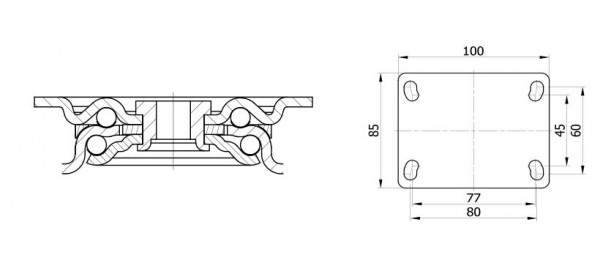

| Size of Plate | 100 x 85 mm |
| Plate Hole Centers | 80 x 60 or 77 x 45 mm |
| Plate Hole | 9 mm |
| Shock Absorbing Extent | 10 mm |
| Offset | 50 ~ 55 mm |
| Overall Height | 177.5 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 110 kg |
| Load Capacity / 4pcs | 330 kg |
| Wheel Diameter | 4.91 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 85 Shore A |
| Size of Plate | 3.93 x 3.34 “ |
| Plate Hole Centers | 3.14 x 2.36 or 3.03 x 1.77 “ |
| Plate Hole | 0.35 “ |
| Shock Absorbing Extent | 0.39 “ |
| Offset | 1.97 ~ 2.16 “ |
| Overall Height | 6.98 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 243 lbs |
| Load Capacity / 4pcs | 728 lbs |
