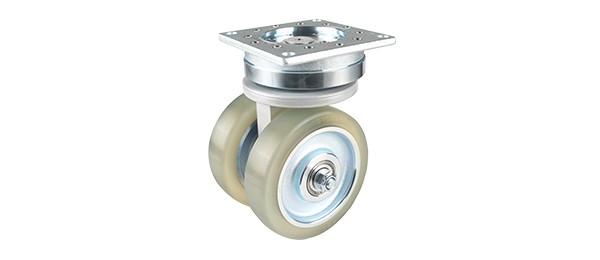

GAMT-150-ASF-HUD
Brand / Thương hiệu:
● Model
ㆍGAMT-150-ASF-HUD(Swivel)
ㆍPatented
* Brackets: Forged steel plate, double thrust bearings + one-row ballbearing in the swivel head to optimize the heavy load, grease nipple, strong welded frame, tilting function to maintain contact with uneven floor, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
* Dual Swivel Structure + Tilting Function
| Wheel Diameter | 150 mm |
| Width of Tread | 40 x 2 mm |
| Hardness of Tread | 95 Shore A |

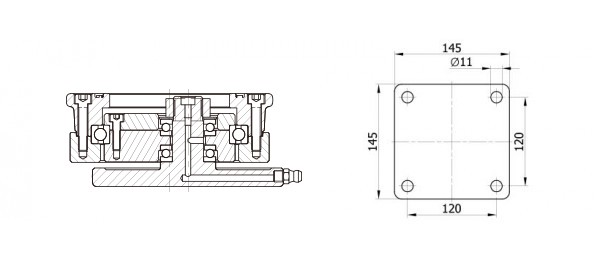

| Size of Plate | 145 x 145 mm |
| Plate Hole Centers | 120 x 120 mm |
| Plate Hole | 11 mm |
| Offset | 15 ~ 35 mm |
| Overall Height | 215 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 630 kg |
| Load Capacity / 4pcs | 1,890 kg |
| Wheel Diameter | 5.90 “ |
| Width of Tread | 1.57 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 5.70 x 5.70 “ |
| Plate Hole Centers | 4.72 x 4.72 “ |
| Plate Hole | 0.43 “ |
| Offset | 0.59 ~ 1.37 “ |
| Overall Height | 8.46 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 1,388 lbs |
| Load Capacity / 4pcs | 4,166 lbs |
