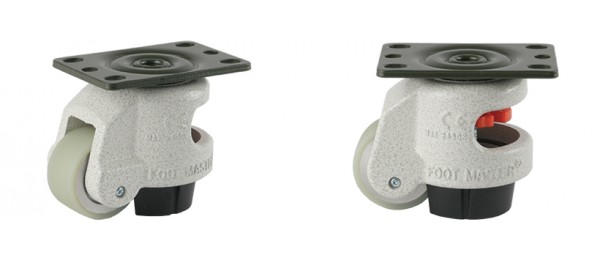

GDN-60-PUS-F-HUP
Brand / Thương hiệu:
● Model
ㆍGDN-60-F-HUP-PUS
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, ivory-colored aluminum frame, height adjustment with integrated orange handle or spanner, anti-vibration NBR pad
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore D70), aluminum core, plain bearing
| Wheel Diameter | 50 mm |
| Width of Tread | 25 mm |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole | 9 mm |
| Leveling Extent | 10 mm |
| Offset | 38 mm |
| Overall Height | 82 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 250 kg |
| Load Capacity / 4pcs | 500 kg |
| Wheel Diameter | 1.97 “ |
| Width of Tread | 0.98 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 3.74 x 2.52 “ |
| Plate Hole Centers | 3.07 x 1.77 or 2.83 x 1.77 “ |
| Plate Hole | 0.35 “ |
| Leveling Extent | 0.39 “ |
| Offset | 1.5 “ |
| Overall Height | 3.22 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 551 lbs |
| Load Capacity / 4pcs | 1,102 lbs |
