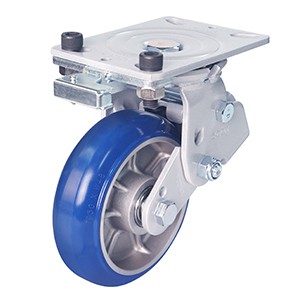

Directional lock
-
- Model: GDSP-200-ASF/ARF/BSF/BRF-MUD-4DL
www.cokhitieuchuan.com
MAKING IT EASIER
GDSP-200-ASF/ARF/BSF/BRF-MUD
Brand / Thương hiệu:

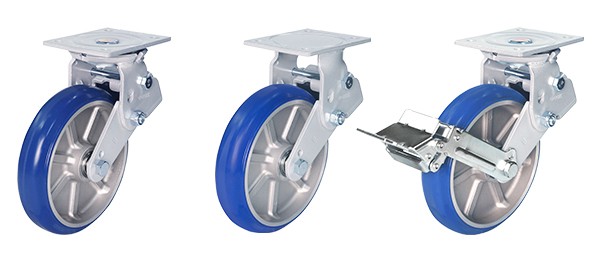

● Model
ㆍGDSP-200-ASF-MUD(Swivel)
ㆍGDSP-200-ARF-MUD(Rigid)
ㆍGDSP-200-BSF-MUD(Swivel with brake)
ㆍGDSP-200-BRF-MUD(Rigid with brake)
● Spring hardness selectable
ㆍ(65º or 75º) / (Standard 75º)
Towing by power vehicle(20km/h)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong welded frame, fine shock absorption function with special rubber, towing by power vehicle, steel top brake system, bolted wheel axle structure
* Surface Treatment: Powder coating,Zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings
| Wheel Diameter | 200 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 95 Shore A |

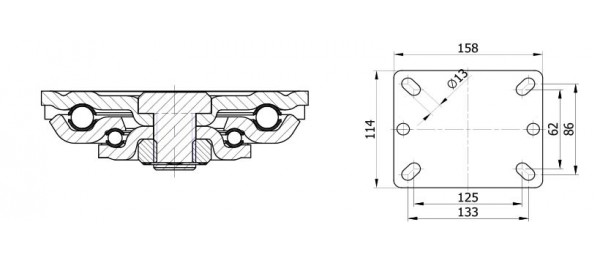

| Size of Plate | 158 x 114 mm |
| Plate Hole Centers | 133 x 86 or 125 x 62 mm |
| Plate Hole | 13 mm |
| Shock Absorbing Extent | 15 mm |
| Offset | 65 ~ 75 mm |
| Overall Height | 253 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 450 kg |
| Load Capacity / 4pcs | 1,350 kg |
| Wheel Diameter | 7.87 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 6.22 x 4.49 “ |
| Plate Hole Centers | 5.24 x 3.39 or 4.92 x 2.44 “ |
| Plate Hole | 0.51 “ |
| Shock Absorbing Extent | 0.59 “ |
| Offset | 2.56 ~ 2.95 “ |
| Overall Height | 9.96 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 992 lbs |
| Load Capacity / 4pcs | 2,976 lbs |
