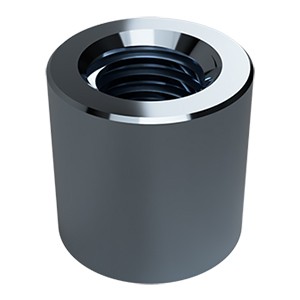

TM32-4 stem NUT
-
- ● Available for separate purchase of TM32 NUT
www.cokhitieuchuan.com
MAKING IT EASIER
GXT-100-ASS/BSS-MCD
Brand / Thương hiệu:

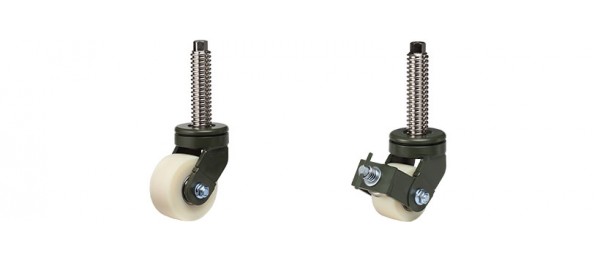

● Model
ㆍGXT-100-ASS-MCD(Swivel)
ㆍGXT-100-BSS-MCD(Swivel with brake)
ㆍTM-32-4 stem NUT option
* Brackets: Forged steel bolt, double thrust bearing in the swivel head to optimize heavy load, strong welded steel frame, hand-operated wheel brake system, special wheel axle for reinforce of smooth rolling
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings
| Wheel Diameter | 100 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 80 Shore D |

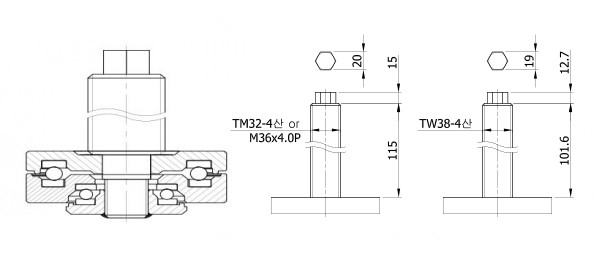

| Center Bolt | TM32-4Thread or M 36 x 4.0P / TW38-4Thread |
| Bolt Length | 115(HEX. +15) mm / 101.6(HEX. +12.7) mm |
| Offset | 40 mm |
| Overall Height | 140 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 600 kg |
| Load Capacity / 4pcs | 1,800 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 80 Shore D |
| Center Bolt | TM32-4Thread or x M 36 x 4.0P / TW38-4Thread |
| Bolt Length | 4.52(HEX. +0.59) ” / 4(HEX. +0.5) ” |
| Offset | 1.57 “ |
| Overall Height | 5.51 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 1,323 lbs |
| Load Capacity / 4pcs | 3,969 lbs |
