Anti-static
-
- Model: PL-100-ASS/BSS-LUD-WEU

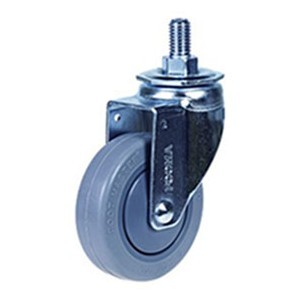

Zinc-plated frame
-
- Model: PL-100-ASS/BSS-LUD-FZN

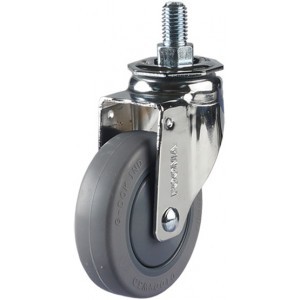

Chrome plated frame
-
- Model: PL-100-ASS/BSS-LUD-FCR
www.cokhitieuchuan.com
MAKING IT EASIER
PL-100-ASS/BSS-LUD
Brand / Thương hiệu:
● Model

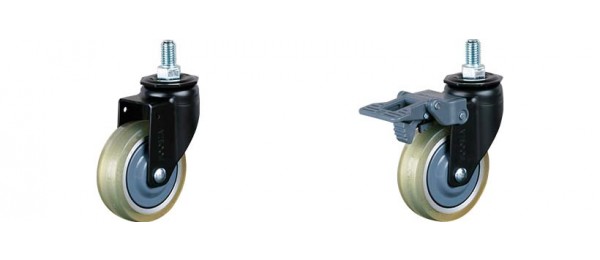

ㆍPL-100-ASS-LUD(Swivel)
ㆍPL-100-BSS-LUD(Swivel with brake)
* Brackets: Forged steel bolt, precision ball bearing in the swivel head which is advantageous to smooth swiveling and excellent durability, strong integrated pressed steel frame, total-lock top brake system which is applied in wheel and swivel head simultaneously with independent locking and unlocking lever, bolted wheel axle structure,
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A90), aluminum core, two ball bearings
| Wheel Diameter | 100 mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 90 Shore A |

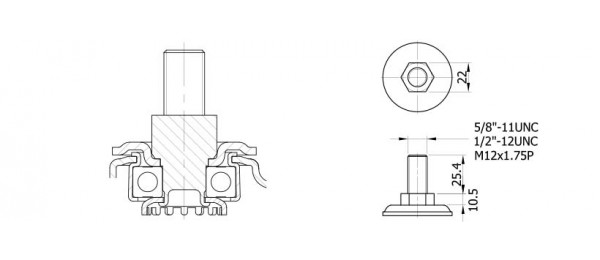

| Center Bolt | 5/8 “-11UNC or M12x1.75P or 1/2 “-12UNC |
| Bolt Length | 25 mm |
| Offset | 40 mm |
| Overall Height | 137.5 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 120 kg |
| Load Capacity / 4pcs | 360 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 90 Shore A |
| Center Bolt | 5/8 “-11UNC or M12x1.75P or 1/2 “-12UNC |
| Bolt Length | 0.98 “ |
| Offset | 1.57 “ |
| Overall Height | 5.41 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 264 lbs |
| Load Capacity / 4pcs | 792 lbs |
