PLM-200-PEU-ASF/ARF/BSF-MUD
Brand / Thương hiệu:

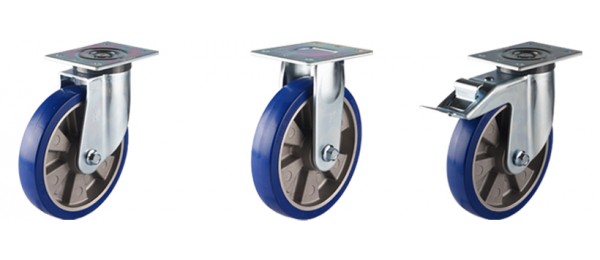

● Model
ㆍPLM-200-ASF-MUD-PEU(Swivel)
ㆍPLM-200-ARF-MUD-PEU(Rigid)
ㆍPLM-200-BSF-MUD-PEU(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, total-lock steel top brake system which is applied in wheel and swivel head simultaneously, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings
| Wheel Diameter | 200 mm |
| Width of Tread | 40 mm |
| Hardness of Tread | 95 Shore A |

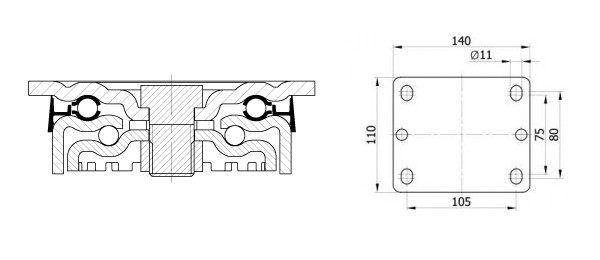

| Size of Plate | 140 x 110 mm |
| Plate Hole Centers | 105 x 80 or 105 x 75 mm |
| Plate Hole | 11 mm |
| Offset | 55 mm |
| Overall Height | 240 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 420 kg |
| Load Capacity / 4pcs | 1,260 kg |
| Wheel Diameter | 7.86 “ |
| Width of Tread | 1.57 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 5.51 x 4.33 “ |
| Plate Hole Centers | 4.13 x 3.15 or 4.13 x 2.95 “ |
| Plate Hole | 0.43 “ |
| Offset | 2.16 “ |
| Overall Height | 9.45 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 926 lbs |
| Load Capacity / 4pcs | 2,778 lbs |
