PLM-75-ASF/ARF/BSF-MCD
Brand / Thương hiệu:

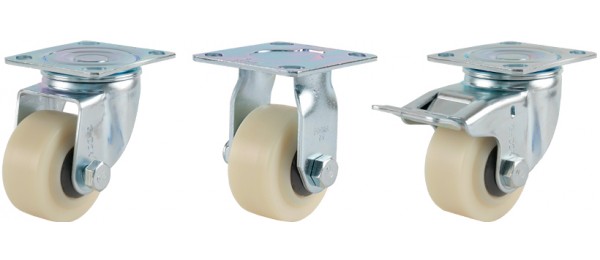

● Model
ㆍPLM-75-ASF-MCD(Swivel)
ㆍPLM-75-ARF-MCD(Rigid)
ㆍPLM-75-BSF-MCD(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, strong integrated pressed steel frame, total-lock steel top brake system which is applied in wheel and swivel head simultaneously, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings
| Wheel Diameter | 75 mm |
| Width of Tread | 35 mm |
| Hardness of Tread | 80 Shore D |

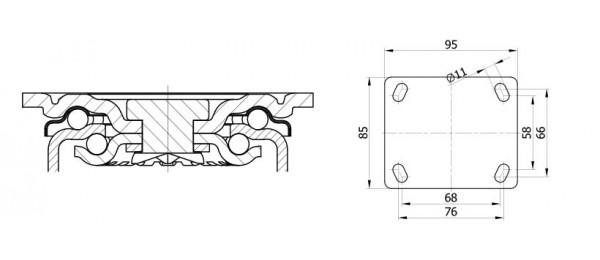

| Size of Plate | 95 x 85 mm |
| Plate Hole Centers | 76 x 58 or 68 x 66 mm |
| Plate Hole | 11 mm |
| Offset | 38 mm |
| Overall Height | 110 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 300 kg |
| Load Capacity / 4pcs | 900 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 1.38 “ |
| Hardness of Tread | 80 Shore D |
| Size of Plate | 3.74 x 3.35 “ |
| Plate Hole Centers | 2.99 x 2.28 or 2.68 x 2.60 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.50 “ |
| Overall Height | 4.33 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 661 lbs |
| Load Capacity / 4pcs | 1,984 lbs |
