PM-100-ASF/ARF/BSF-SUD
Brand / Thương hiệu:

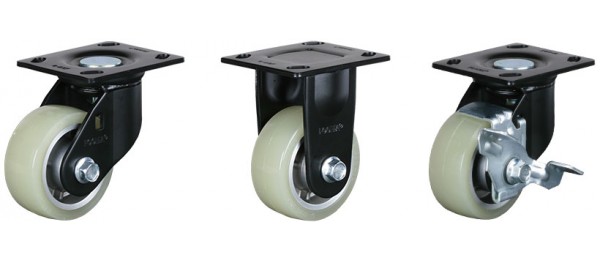

● Model
ㆍPM-100-ASF-SUD(Swivel)
ㆍPM-100-ARF-SUD(Rigid)
ㆍPM-100-BSF-SUD(Swivel with brake)

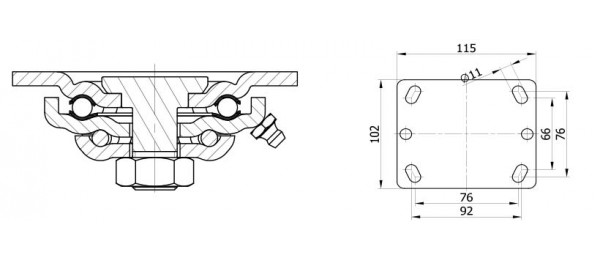

* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, grease nipple, strong welded steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A70), aluminum core, two ball bearings
| Wheel Diameter | 100 mm |
| Width of Tread | 40 mm |
| Hardness of Tread | 70 Shore A |
| Size of Plate | 115 x 102 mm |
| Plate Hole Centers | 92 x 66 or 76 x 76 mm |
| Plate Hole | 11 mm |
| Offset | 50 mm |
| Overall Height | 136 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 200 kg |
| Load Capacity / 4pcs | 600 kg |
| Wheel Diameter | 3.93 “ |
| Width of Tread | 1.57 “ |
| Hardness of Tread | 70 Shore A |
| Size of Plate | 4.52 x 4.01 “ |
| Plate Hole Centers | 3.62 x 2.59 or 2.99 x 2.99 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.97 “ |
| Overall Height | 5.34 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 440 lbs |
| Load Capacity / 4pcs | 1,320 lbs |
