PM-130-ASF/ARF/BSF-MCD
Brand / Thương hiệu:

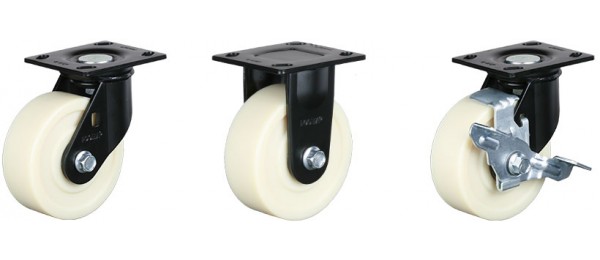

● Model
ㆍPM-130-ASF-MCD(Swivel)
ㆍPM-130-ARF-MCD(Rigid)
ㆍPM-130-BSF-MCD(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, grease nipple, strong welded steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings
| Wheel Diameter | 130 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 80 Shore D |

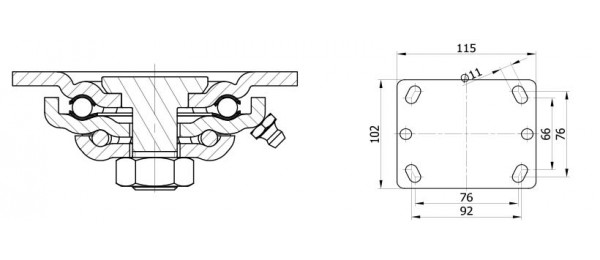

| Size of Plate | 115 x 102 mm |
| Plate Hole Centers | 92 x 66 or 76 x 76 mm |
| Plate Hole | 11 mm |
| Offset | 50 mm |
| Overall Height | 162 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 400 kg |
| Load Capacity / 4pcs | 1,200 kg |
| Wheel Diameter | 5.11 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 80 Shore D |
| Size of Plate | 4.52 x 4.01 “ |
| Plate Hole Centers | 3.62 x 2.59 or 2.99 x 2.99 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.97 “ |
| Overall Height | 6.37 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 882 lbs |
| Load Capacity / 4pcs | 2,646 lbs |
