PM-150-ASF/ARF/BSF-HUWD
Brand / Thương hiệu:

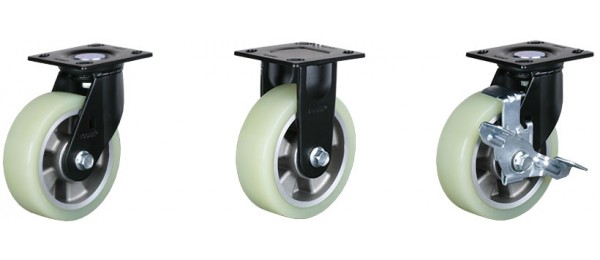

● Model
ㆍPM-150-ASF-HUWD(Swivel)
ㆍPM-150-ARF-HUWD(Rigid)
ㆍPM-150-BSF-HUWD(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, grease nipple, strong welded steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: Cast polyurethane(Shore A95), aluminum core, two ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 95 Shore A |

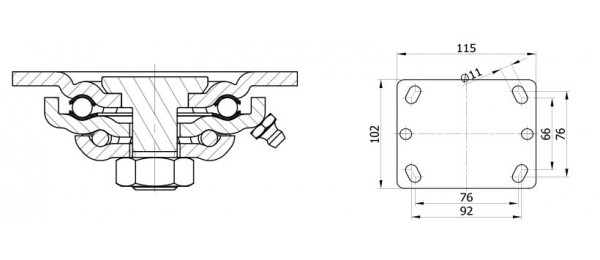

| Size of Plate | 115 x 102 mm |
| Plate Hole Centers | 92 x 66 or 76 x 76 mm |
| Plate Hole | 11 mm |
| Offset | 50 mm |
| Overall Height | 190 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 450 kg |
| Load Capacity / 4pcs | 1,350 kg |
| Wheel Diameter | 5.90 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 4.52 x 4.01 “ |
| Plate Hole Centers | 3.62 x 2.59 or 2.99 x 2.99 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.97 “ |
| Overall Height | 7.47 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 992 lbs |
| Load Capacity / 4pcs | 2,976 lbs |
