PMW-130-ASF/ARF/BSF-NYD
Brand / Thương hiệu:

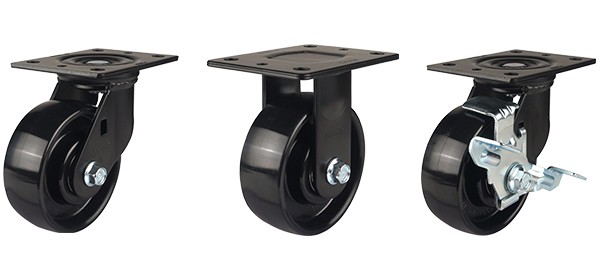

● Model
ㆍPMW-130-ASF-NYD(Swivel)
ㆍPMW-130-ARF-NYD(Rigid)
ㆍPMW-130-BSF-NYD(Swivel with brake)
* Brackets: Pressed steel plate, double ball bearing with hardened bearing seats in the swivel head, grease nipple, strong welded steel frame, smooth-operating side brake system, bolted wheel axle structure
* Surface Treatment: Powder coating, zinc plated
* Wheel: High-Performance Nylon(Shore D70), two ball bearings
| Wheel Diameter | 130 mm |
| Width of Tread | 48 mm |
| Hardness of Tread | 70 Shore D |

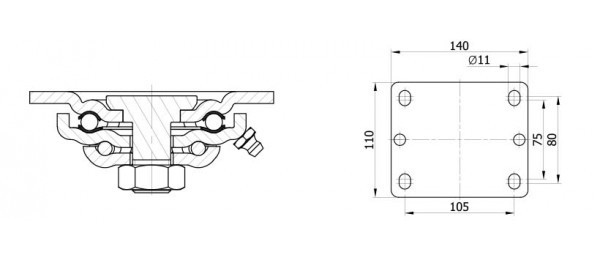

| Size of Plate | 140 x 110 mm |
| Plate Hole Centers | 105 x 80 or 105 x 75 mm |
| Plate Hole | 11 mm |
| Offset | 50 mm |
| Overall Height | 162 mm |
| Temperature | -10 ~ +90 ℃ |
| Load Capacity / 1pcs | 400 kg |
| Load Capacity / 4pcs | 1,200 kg |
| Wheel Diameter | 5.11 “ |
| Width of Tread | 1.89 “ |
| Hardness of Tread | 70 Shore D |
| Size of Plate | 5.50 x 4.32 “ |
| Plate Hole Centers | 4.13 x 3.14 or 4.13 x 2.95 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.97 “ |
| Overall Height | 6.37 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 882 lbs |
| Load Capacity / 4pcs | 2,646 lbs |
