MAKING IT EASIER
RDS > Manual Stage
Brand / Thương hiệu:
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
-
Read the zero position of the scale Ⓐ in mm on the scale Ⓑ (29mm in the picture on the right)
-
Look at the scale Ⓐ and read the scale Ⓒ that comes to the same position as the scale Ⓑ (matching between bottom and top scales) (the above figures in 0.1 mm increments)
-
The total measured value of (1) and (2) is 29.6 mm.
| Specification / Model | RDS-40L, R | RDS-60L, R | RDS-80L, R | |
|---|---|---|---|---|
| Stage Surface (mm) | Φ 40 | Φ 60 | Φ 80 | |
| Travel Range (mm) | 360º / ± 5º | 360º / ± 5º | 360º / ± 5º | |
| Reading (mm) | 1º / Vernier | 1º / Vernier | 1º / Vernier | |
| Roundness (mm) | 0.05 | 0.05 | 0.05 | |
| Round out (mm) | 0.03 | 0.03 | 0.03 | |
| Travel Guide | Surface Work System | Surface Work System | Surface Work System | |
| Material | Brass | Aluminum | Aluminum | |
| Load Capacity (kg/f) | 1 | 3 | 3 | |
| Weight (kg) | 0.095 | 0.6 | 0.6 |

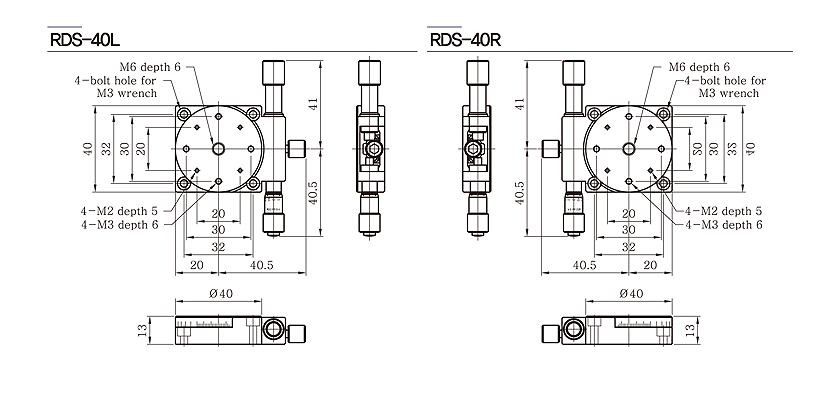

RDS-40

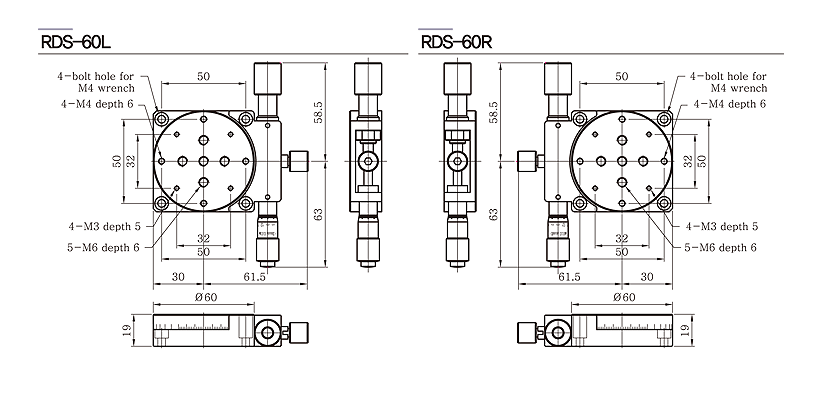

RDS-60

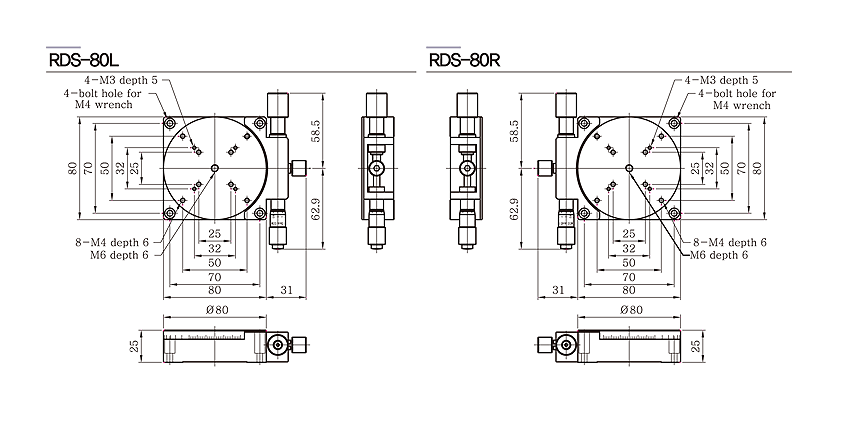

RDS-80
