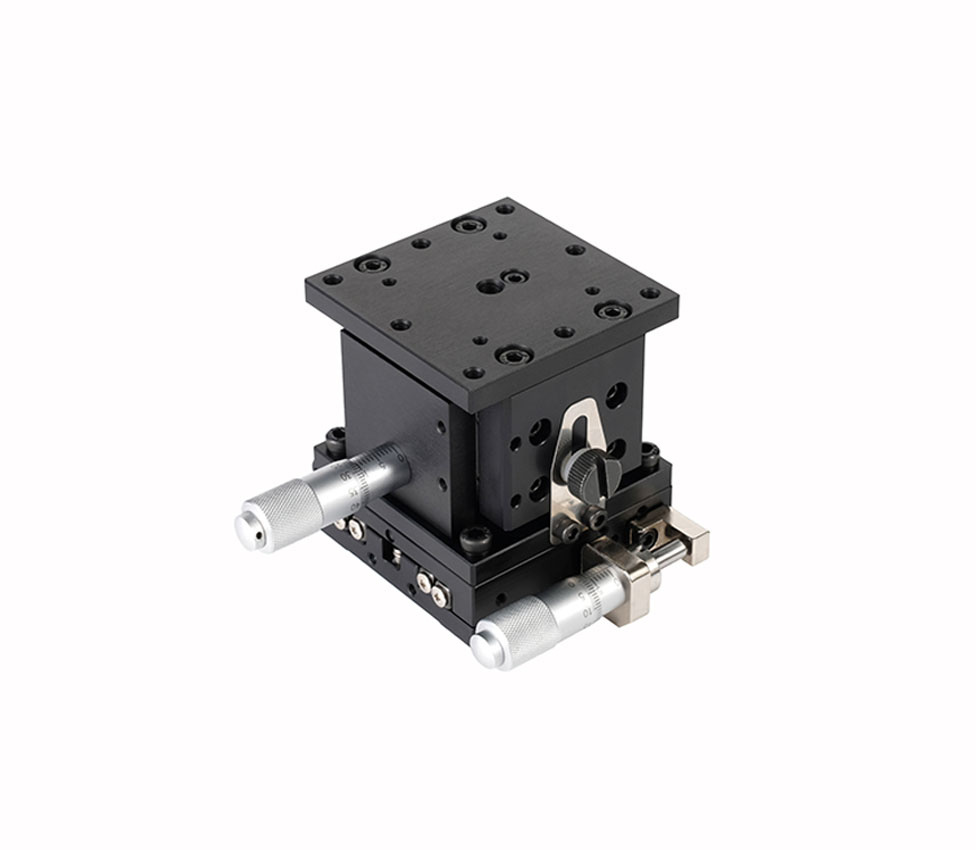

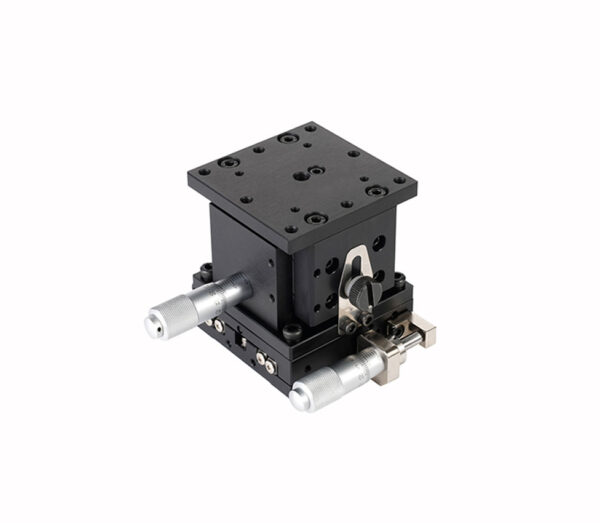

Bàn dịch chuyển tuyến tính 2 trục ngang-dọc
● Bàn tinh chỉnh trục X,Z
●Cross Roller (chính xác cao, chịu tải tốt cho cả hai trục, ma sát thấp).
Mô hình chọn lọc
●S7H
| Specification / Model | S7H-4016L, R, C | S7H-4018L, R, C | S7H-6018L, R, C | S7H-6020L, R, C |
|---|---|---|---|---|
| Microhead Position | Left, Right, Center | Left, Right, Center | Left, Right, Center | Left, Right, Center |
| Z- Stage Type | Horizontal | Horizontal | Horizontal | Horizontal |
| Stage Surface (mm) | 40 x 40 | 40 x 40 | 60 X 60 | 60 X 60 |
| Stroke (mm) – X | ± 6.5 | ± 6.5 | ± 6.5 | ± 6.5 |
| Stroke (mm) – Z | ± 3 | ± 3 | ± 6.5 | ± 6.5 |
| Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) |
| Parallelism (mm) | 0.05 | 0.05 | 0.05 | 0.05 |
| Running Parallelism (mm) | 0.02 | 0.02 | 0.02 | 0.02 |
| Straightness (mm) | 0.005 | 0.005 | 0.01 | 0.01 |
| Travel Guide | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing |
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Load Capacity (kg/f) | 1 | 1 | 4 | 4 |
| Weight (kg) | 0.28 | 0.28 | 0.7 | 0.73 |
| Specification / Model | S7H-6024L | S7H-80L, R, C | S7H-100L, R, C | S7H-12025L, R, C |
|---|---|---|---|---|
| Microhead Position | Left, Right, Center | Left, Right, Center | Left, Right, Center | Left, Right, Center |
| Z- Stage Type | Horizontal | Horizontal | Horizontal | Horizontal |
| Stage Surface (mm) | 60 X 60 | 80 X 80 | 100 X 100 | 120 X 120 |
| Stroke (mm) – X | ± 6.5 | ± 12.5 | ± 12.5 | ± 12.5 |
| Stroke (mm) – Z | ± 6.5 | ± 6.5 | ± 12.5 | ± 12.5 |
| Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) |
| Parallelism (mm) | 0.05 | 0.05 | 0.08 | 0.08 |
| Running Parallelism (mm) | 0.02 | 0.02 | 0.02 | 0.02 |
| Straightness (mm) | 0.01 | 0.01 | 0.01 | 0.01 |
| Travel Guide | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing |
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Load Capacity (kg/f) | 4 | 4 | 5 | 6 |
| Weight (kg) | 0.77 | 1.26 | 1.67 | 4.35 |
| Specification / Model | S7H-12050L, R, C | |||
|---|---|---|---|---|
| Microhead Position | Left, Right, Center | |||
| Z- Stage Type | Horizontal | |||
| Stage Surface (mm) | 120 X 120 | |||
| Stroke (mm) – X | ± 25 | |||
| Stroke (mm) – Z | ± 12.5 | |||
| Resolution (mm) | 10um / division (0.01) | |||
| Parallelism (mm) | 0.08 | |||
| Running Parallelism (mm) | 0.02 | |||
| Straightness (mm) | 0.01 | |||
| Travel Guide | Crossed Roller Bearing | |||
| Material | Aluminum | |||
| Load Capacity (kg/f) | 6 | |||
| Weight (kg) | 4.35 |
S7H-4016
S7H-4018
S7H-6018
S7H-6020
S7H-6024
S7H-80
S7H-100
S7H-12025
S7H-12050
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
