Sweeper
-
- Model: GAGD-75-ASF-HUD-SCP
www.cokhitieuchuan.com
MAKING IT EASIER

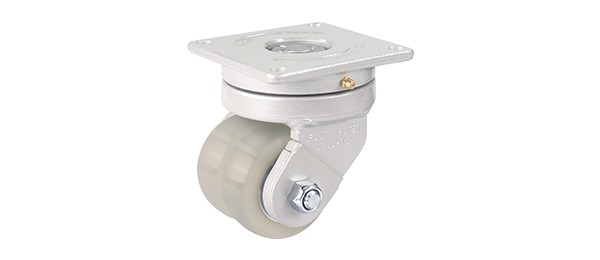

GAGD-75-ASF-HUD
Brand / Brand:
● Model
ㆍGAGD-75-ASF-HUD(Swivel)

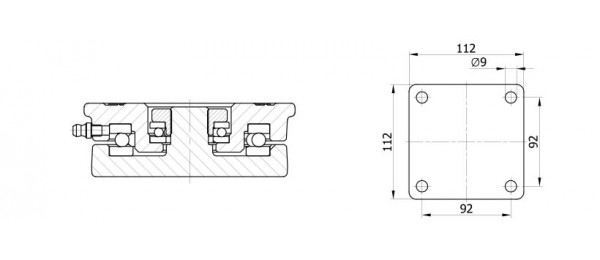

* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize the heavy load, grease nipple, strong welded frame, bolted wheel axle structure
* Surface Treatment: Powder coating,Zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
| Wheel Diameter | 75 mm |
| Width of Tread | 30 x 2 mm |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 112 x 112 mm |
| Plate Hole Centers | 92 x 92 mm |
| Plate Hole | 9mm |
| Offset | 30 mm |
| Overall Height | 123 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 250 kg |
| Load Capacity / 4pcs | 750 kg |
| Wheel Diameter | 2.95 “ |
| Width of Tread | 1.18 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 4.40 x 4.40 “ |
| Plate Hole Centers | 3.62 x 3.62 “ |
| Plate Hole | 0.35 “ |
| Offset | 1.18 “ |
| Overall Height | 4.84 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 551 lbs |
| Load Capacity / 4pcs | 1,653 lbs |
