GATD-150-ASF-HUD
Brand / Brand:
● Model

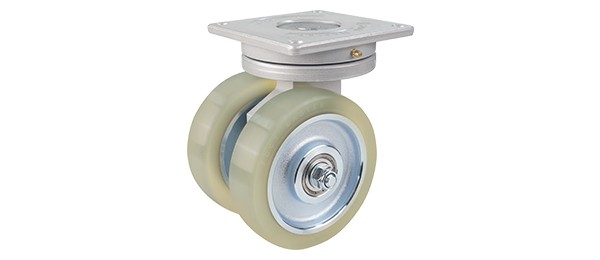

ㆍGATD-150-ASF-HUD(Swivel)

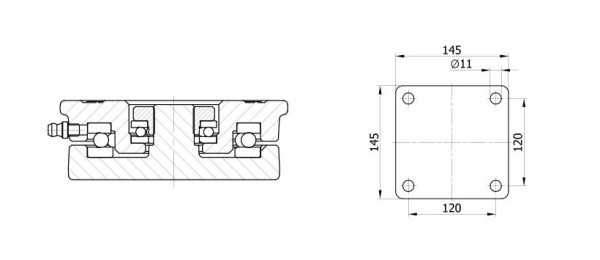

* Brackets: Forged steel plate, double thrust bearing in the swivel head to optimize heavy load, grease nipple, strong welded frame, tilting function to maintain contact with uneven floor, bolted wheel axle structure
* Surface Treatment: Powder coating,Zinc plated
* Wheel: Cast polyurethane(Shore A95), steel core, two ball bearings
| Wheel Diameter | 150 mm |
| Width of Tread | 40 x 2 mm |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 145 x 145 mm |
| Plate Hole Centers | 120 x 120 mm |
| Plate Hole | 11 mm |
| Offset | 35 mm |
| Overall Height | 200 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 630 kg |
| Load Capacity / 4pcs | 1,890 kg |
| Wheel Diameter | 5.90 “ |
| Width of Tread | 1.57 x 2 “ |
| Hardness of Tread | 95 Shore A |
| Size of Plate | 5.70 x 5.70 “ |
| Plate Hole Centers | 4.72 x 4.72 “ |
| Plate Hole | 0.43 “ |
| Offset | 1.37 “ |
| Overall Height | 7.87 “ |
| Temperature | 14 ~ 194 ℉ |
| Load Capacity / 1pcs | 1,388 lbs |
| Load Capacity / 4pcs | 4,166 lbs |
