GL-125-ASF/ARF/BSF-TUN
Brand / Brand:

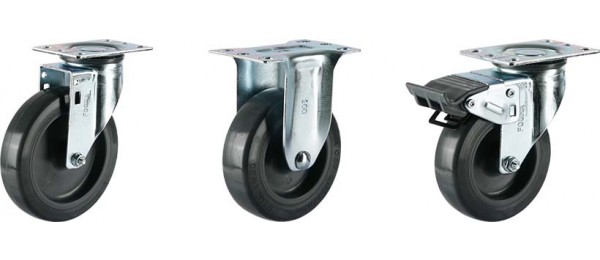

● Model
ㆍGL-125-ASF-TUN(Swivel)
ㆍGL-125-ARF-TUN(Rigid)
ㆍGL-125-BSF-TUN(Swivel with brake)
* Brackets: Pressed steel plate, strong integrated pressed steel frame, dust protection cover in the swivel head, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: Injected polyurethane(Shore A92), PP core, no bearing
| Wheel Diameter | 125mm |
| Width of Tread | 30 mm |
| Hardness of Tread | 92 Shore A |

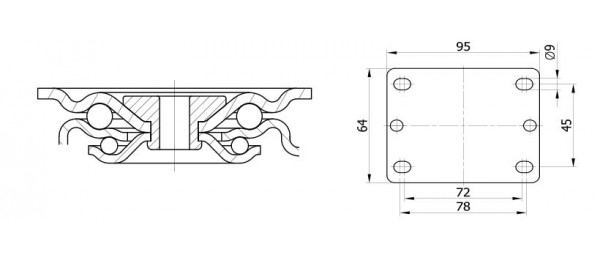

| Size of Plate | 95 x 64 mm |
| Plate Hole Centers | 78 x 45 or 72 x 45 mm |
| Plate Hole | 9mm |
| Offset | 35 mm |
| Overall Height | 157 mm |
| Temperature | -10 ~ 90 ℃ |
| Load Capacity / 1pcs | 100 kg |
| Load Capacity / 4pcs | 300 kg |
| Wheel Diameter | 4.92 “ |
| Width of Tread | 1.18 “ |
| Hardness of Tread | 92 Shore A |
| Size of Plate | 3.74 x 2.52 “ |
| Plate Hole Centers | 3.07 x 1.77 or 2.83 x 1.77 “ |
| Plate Hole | 0.35 “ |
| Offset | 1.37 “ |
| Overall Height | 6.18 “ |
| Temperature | +14 ~ +194 ℉ |
| Load Capacity / 1pcs | 220 lbs |
| Load Capacity / 4pcs | 660 lbs |
