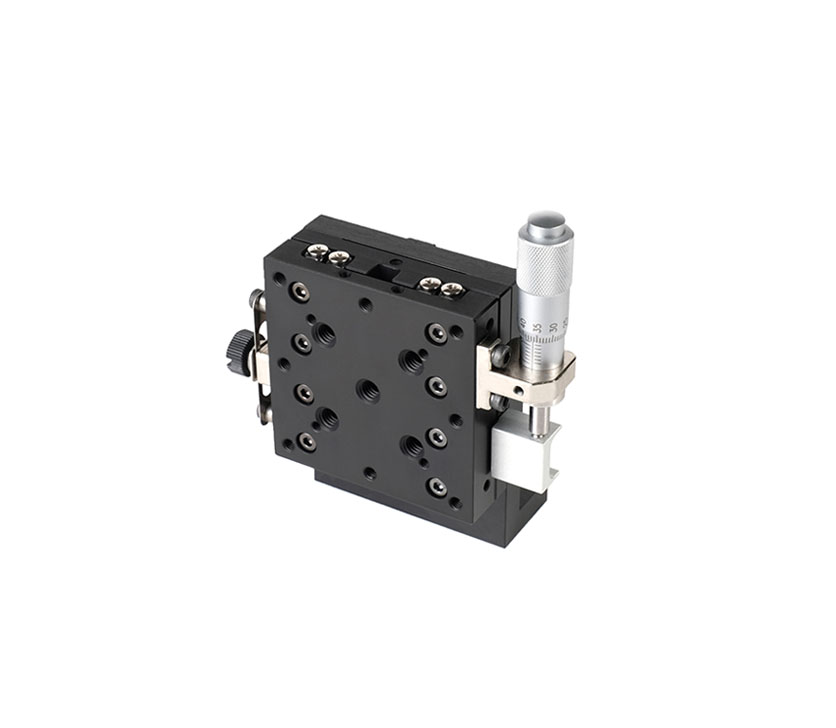

S6V > Manual Stage
Brand / Brand:
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
-
Read the zero position of the scale Ⓐ in mm on the scale Ⓑ (29mm in the picture on the right)
-
Look at the scale Ⓐ and read the scale Ⓒ that comes to the same position as the scale Ⓑ (matching between bottom and top scales) (the above figures in 0.1 mm increments)
-
The total measured value of (1) and (2) is 29.6 mm.
| Specification / Model | S6V-25L, R, C | S6V-4016L, R, C | S6V-4018L, R, C | S6V-6018L, R, C |
|---|---|---|---|---|
| Microhead Position | Left, Right, Center | Left, Right, Center | Left, Right, Center | Left, Right, Center |
| Z – Stage Type | Vertical | Vertical | Vertical | Vertical |
| Stage Surface (mm) | 25 X 25 | 40 X 40 | 40 X 40 | 60 X 60 |
| Stroke (mm) | ± 3 | ± 6.5 | ± 6.5 | ± 6.5 |
| Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) |
| Parallelism (mm) | 0.03 | 0.03 | 0.03 | 0.03 |
| Running Parallelism (mm) | 0.02 | 0.02 | 0.02 | 0.02 |
| Straightness (mm) | 0.003 | 0.003 | 0.003 | 0.008 |
| Travel Guide | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing |
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Load Capacity (kg/f) | 0.5 | 2 | 2 | 2 |
| Weight (kg) | 0.047 | 0.137 | 0.137 | 0.28 |
| Specification / Model | S6V-6020L, R, C | S6V-6024L, R, C | S6V-80L, R, C | S6V-100L, R, C |
|---|---|---|---|---|
| Microhead Position | Left, Right, Center | Left, Right, Center | Left, Right, Center | Left, Right, Center |
| Z – Stage Type | Vertical | Vertical | Vertical | Vertical |
| Stage Surface (mm) | 60 X 60 | 60 X 60 | 80 X 80 | 100 X 100 |
| Stroke (mm) | ± 6.5 | ± 6.5 | ± 12.5 | ± 12.5 |
| Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) |
| Parallelism (mm) | 0.03 | 0.03 | 0.03 | 0.03 |
| Running Parallelism (mm) | 0.02 | 0.02 | 0.015 | 0.015 |
| Straightness (mm) | 0.008 | 0.008 | 0.005 | 0.005 |
| Travel Guide | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing |
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Load Capacity (kg/f) | 2 | 2 | 5 | 5.5 |
| Weight (kg) | 0.31 | 0.35 | 0.49 | 0.65 |
| Specification / Model | S6V-12025L, R, C | S6V-12050L, R, C | ||
|---|---|---|---|---|
| Microhead Position | Left, Right, Center | Left, Right, Center | ||
| Z – Stage Type | Vertical | Vertical | ||
| Stage Surface (mm) | 120 X 120 | 120 X 120 | ||
| Stroke (mm) | ± 12.5 | ± 25 | ||
| Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) | ||
| Parallelism (mm) | 0.03 | 0.03 | ||
| Running Parallelism (mm) | 0.02 | 0.02 | ||
| Straightness (mm) | 0.01 | 0.01 | ||
| Travel Guide | Crossed Roller Bearing | Crossed Roller Bearing | ||
| Material | Aluminum | Aluminum | ||
| Load Capacity (kg/f) | 6.5 | 6.5 | ||
| Weight (kg) | 1.7 | 1.7 |
S6V-25
S6V-4016
S6V-4018
S6V-6018
S6V-6020
S6V-6024
S6V-80
S6V-100
S6V-12025
S6V-12050
