GH-100-ASF/ARF/BSF-MCD
GH-100-ASF/ARF/BSF-MCD - Ảnh 2
GH-100-ASF/ARF/BSF-MCD - Ảnh 3

GH-100-ASF/ARF/BSF-MCD

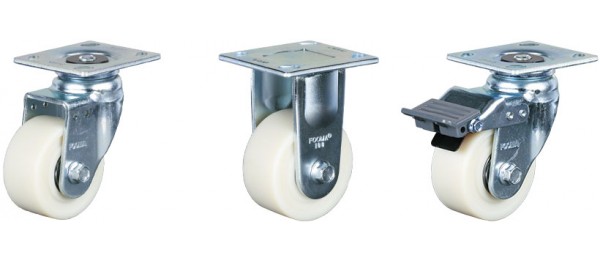

● Model
ㆍGH-100-ASF-MCD(Swivel)
ㆍGH-100-ARF-MCD(Rigid)
ㆍGH-100-BSF-MCD(Swivel with brake)

Brand / Thương hiệu:

* Brackets: Pressed steel plate, double ball bearing with four hardened bearing seats in the swivel head which is advantageous to rapid swiveling and excellent durability, strong integrated pressed steel frame, smooth-operating top brake system, bolted wheel axle structure
* Surface Treatment: Zinc plated
* Wheel: MC nylon(Shore D80), two ball bearings

Wheel Diameter 100 mm
Width of Tread 48 mm
Hardness of Tread 80 Shore D

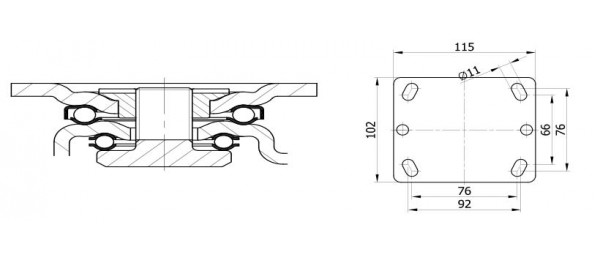

Size of Plate 115 x 102 mm
Plate Hole Centers 92 x 66 or 76 x 76 mm
Plate Hole 11 mm
Offset 50 mm
Overall Height 156 mm
Temperature -10 ~ +90 ℃
Load Capacity / 1pcs 600 kg
Load Capacity / 4pcs 1,800 kg
