Bàn dịch chuyển tuyến tính một trục ngang
Bàn tinh chỉnh trục X&Y
●Cross Roller con lăn chéo – độ chính xác cao, chịu tải tốt
Mô hình chọn lọc
● SS1(SUS) thép không gỉ
| Specification / Model | SS1-40L, R, C | SS1-50L, R, C | SS1-60L, R, C | SS1-60LP, RP |
|---|---|---|---|---|
| Microhead Position | Left, Right, Center | Left, Right, Center | Left, Right, Center | Left, Right |
| Stage Surface (mm) | 40 X 40 | 50 X 50 | 60 X 60 | 60 X 60 |
| Stroke (mm) | ± 6.5 | ± 6.5 | ± 6.5 | ± 6.5 |
| Resolution (mm) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) | 10um / division (0.01) |
| Parallelism (mm) | 0.03 | 0.03 | 0.03 | 0.03 |
| Running Parallelism (mm) | 0.01 | 0.01 | 0.015 | 0.015 |
| Straightness (mm) | 0.003 | 0.003 | 0.005 | 0.005 |
| Travel Guide | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing | Crossed Roller Bearing |
| Material | SUS440C (Shack h.nickel) | SUS304 (Shack h.nickel) | SUS304 (Shack h.nickel) | SUS304 (Shack h.nickel) |
| Load Capacity (kg/f) | 4 | 6 | 8 | 8 |
| Weight (kg) | 0.25 | 0.3 | 0.4 | 0.4 |

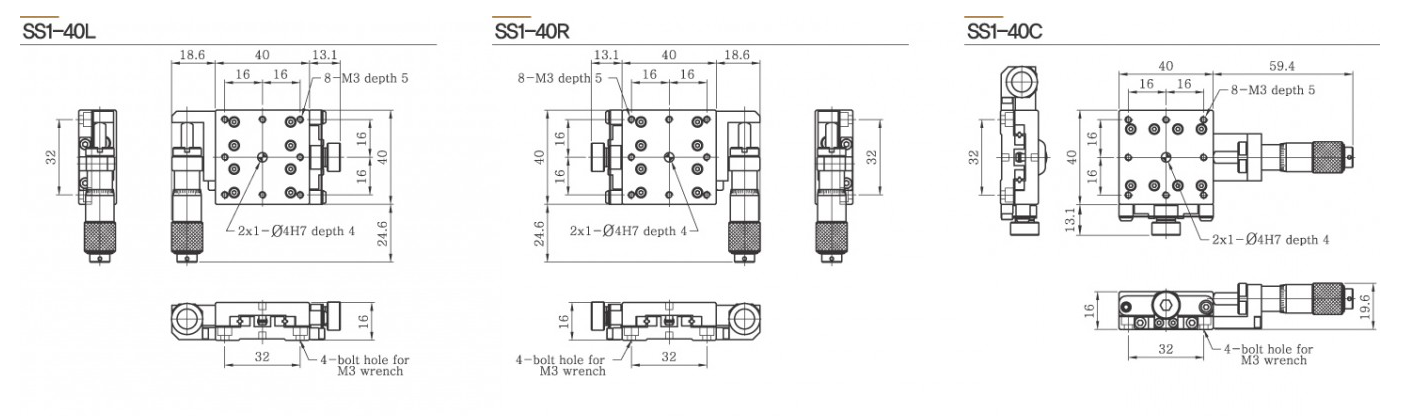

SS1-40

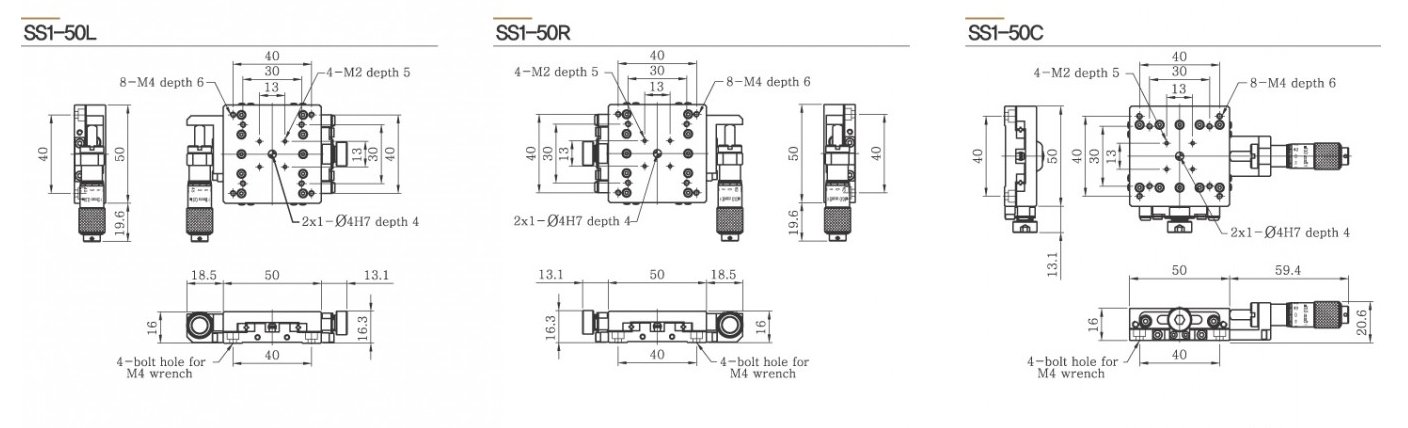

SS1-50

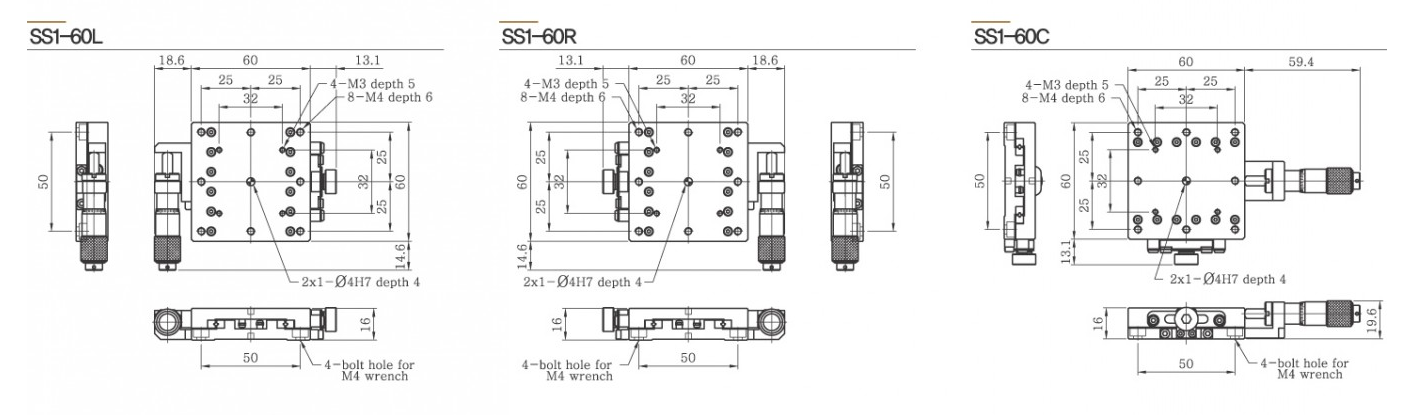

SS1-60

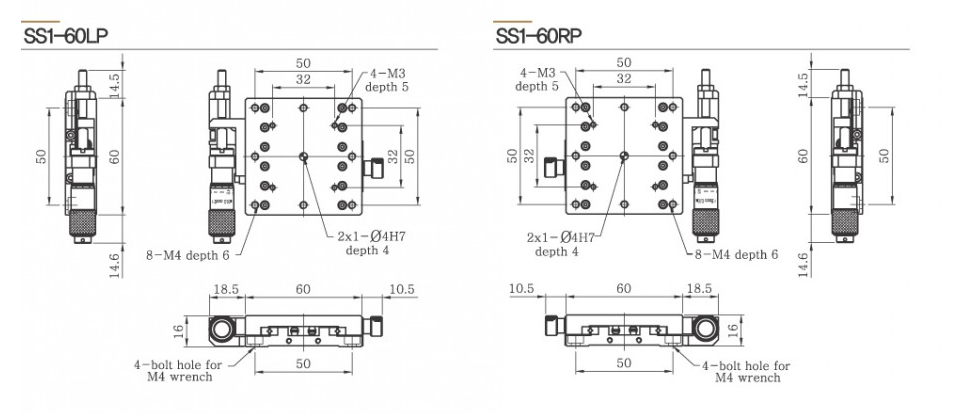

SS1-60LP
SS1-60RP
The amount of movement is read on the vernier scale.
How to read the vernier scale is as follows.
